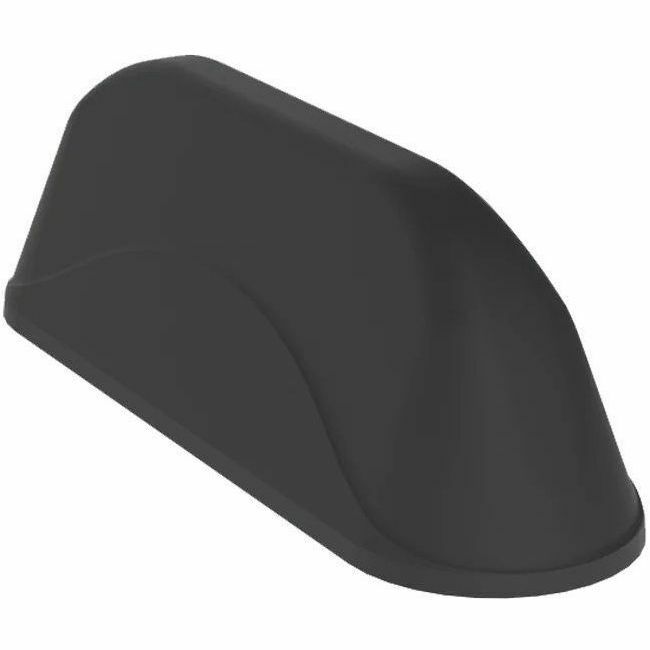

Panorama Antennas L[G]AM-7-27-[X]24-58 Antenna
Manufacturer: Panorama Antennas Ltd
Mfr. Part: LPAM-7-27-24-58-1S
698MHz - 960MHz, 1710MHz - 3800MHz, 1562MHz - 1612MHz, 4900MHz - 6000MHz - 26 dB - Cellular Network, GPS, Vending Machine, Payment Terminal, GLONASS, Wireless Data Network - Black - Panel Mount - Omni-directional - SMA, RP-SMA Connector
![Panorama Antennas L[G]AM-7-27-[X]24-58 Antenna](https://content.etilize.com/650/1045111449.jpg)
About This Product
Overview
- Low Profle Design
- MiMo 5G/4G/3G/2G + Single or 2x2 MiMo 2.4/5GHz
- Optional GPS/GNSS
The L[G]PAM has a compact housing that contains 2x2 MiMo antenna function for 5G/4G/3G/2G and either single or 2x2 MiMo antenna function for 2.4/5GHz.
The LGAM version also includes an active antenna for GPS/GLONASS/Galileo/ BeiDou with 26dB gain LNA.
This antenna range is ideal for vending machines, payment terminals and other M2M or IoT applications.
- Provides optimized pattern coverage with 698MHz - 960MHz frequency
- Designed for cellular network
- Operates at 26 dB gain
- Provides ease of management and installation thanks to its omni-direction feature
- Can be mounted as panel mount
Quick Specifications
- Product Series
- L[G]AM-7-27-[X]24-58
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 698MHz - 960MHz 1710MHz - 3800MHz 1562MHz - 1612MHz 4900MHz - 6000MHz
- Antenna Gain
- 26 dB
- Voltage Standing Wave Ratio (VSWR)
- <2:1 ± 4MHz
- Connector Type
- SMA RP-SMA
- Color Family
- Black
