Panorama Antennas LP[G]AM-BC3G-26 | Compact Low Profile MiMo 2G/3G/4G Antenna
698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2500 MHz to 3800 MHz - 26 dB - 5 dBi - Cellular Network, Smart Metering, Vending Machine, Outdoor, IoT Device - Black - Wall Mount, Mast, Panel Mount - Omni-directional - SMA Connector

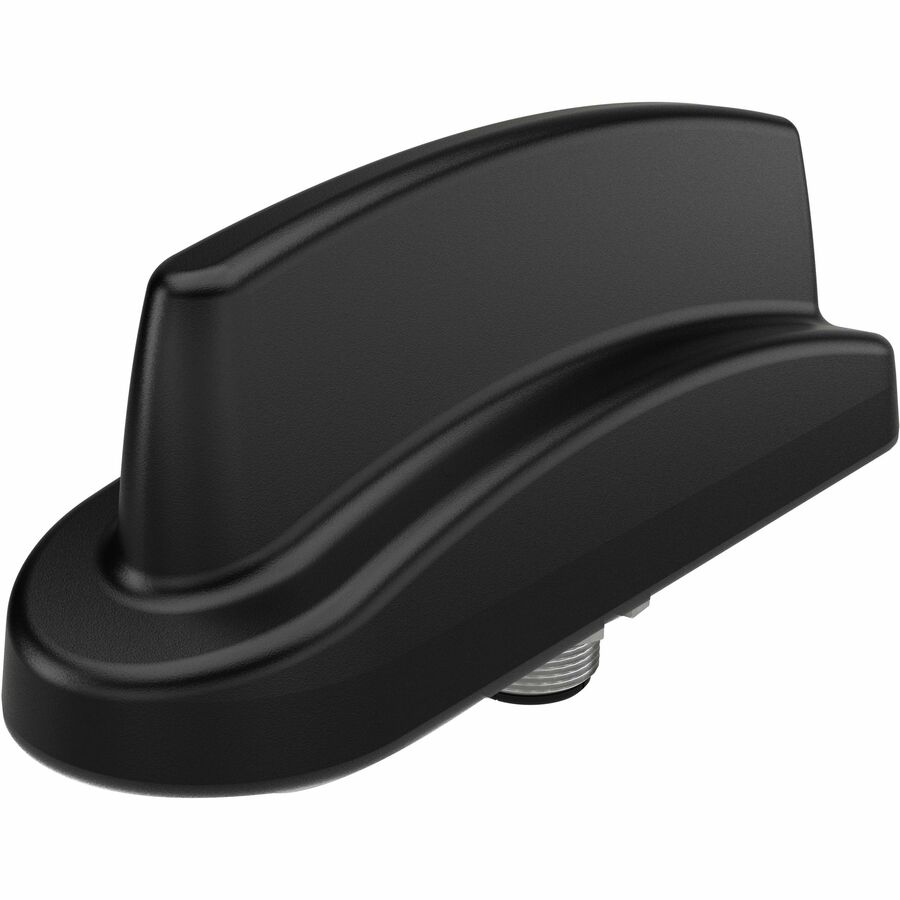

![Panorama Antennas LP[G]AM-BC3G-26 | Compact Low Profile MiMo 2G/3G/4G Antenna](https://content.etilize.com/900/1038678210.jpg)
About This Product
Overview
The LP[G]AM-BC3G-26-[XSP] range has been designed to provide MiMo Cellular / LTE antenna function for IOT and M2M applications.
The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz. The LG version includes an active GPS/GNSS/Galileo/Beidou antenna for applications that require position or timing function.
The antenna can be fitted on a non-conductive panel if required* and offers easy, quick, secure, and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 1m (3.3') or 3m (10') cable and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.
- Designed to operate at 698 MHz to 960 MHz operating frequency range
- This antenna is ideal for use and provide connectivity to your cellular network
- Offers up to 26 dB gain
- Provides ease of management and installation thanks to its omni-direction feature
- Save space with the wall-mount option
Quick Specifications
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 698 MHz to 960 MHz 1710 MHz to 2170 MHz 2500 MHz to 3800 MHz
- Antenna Gain
- 26 dB
- Antenna Gain (Isotropic)
- 5 dBi
- Connector Type
- SMA
- Color Family
- Black
- Product Color
- Black
