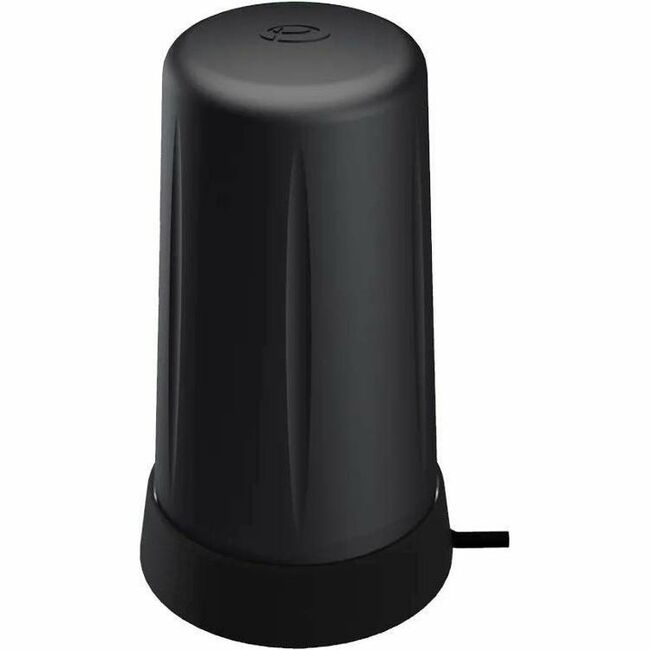

Panorama Antennas LPBEM-6-60 Antenna
617 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2170 MHz to 2700 MHz, 3400 MHz to 3800 MHz, 4000 MHz to 6000 MHz - 8 dBi - GPS, Cellular Network, Kiosk, Vending Machine, Smart Metering - Black - Magnetic Mount - Omni-directional - SMA Connector
About This Product
Overview
The LPBEM-6-60 is a high performance SiSo LTE antenna covering 617-960/1710-6000MHz.
The Panorama LPBEM-6-60 is a range of low cost high performance magnetic mount antennas for temporary fit applications. At only 95mm (3.7") high and protected by a robust high impact radome the antenna is almost impervious to daily wear and tear.
The LPBEM offers excellent performance across a wide bandwidth. The LPBEM covers global cellular and LTE frequencies from 617-960 MHz and 1710-6000 MHz making it an extremely versatile product. Although intended for magnetic mounting on a conductive ground plane the antenna can also be used for desk mounting applications with some impact on performance.
Supplied with a convenient length of flexible RG174 cable and a double sided adhesive pad, the LPBEM is easy to install and compatible with a large range of modems. Multiple units can be deployed suitably separated for MiMo applications.
- Low profile wideband antenna
- Cost effective solution
- Robust product with integrated cable of various lengths
- Covers all 2G/3G/4G/5G LTE cellular bands from 600-6000MHz
- Medium dB gain antenna
- Magnetic mount solution
Quick Specifications
- Product Series
- LPBEM-6-60
- Product Model
- LPBEM
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 617 MHz to 960 MHz 1710 MHz to 2170 MHz 2170 MHz to 2700 MHz 3400 MHz to 3800 MHz 4000 MHz to 6000 MHz
- Antenna Gain (Isotropic)
- 8 dBi
- Connector Type
- SMA
- Color Family
- Black
