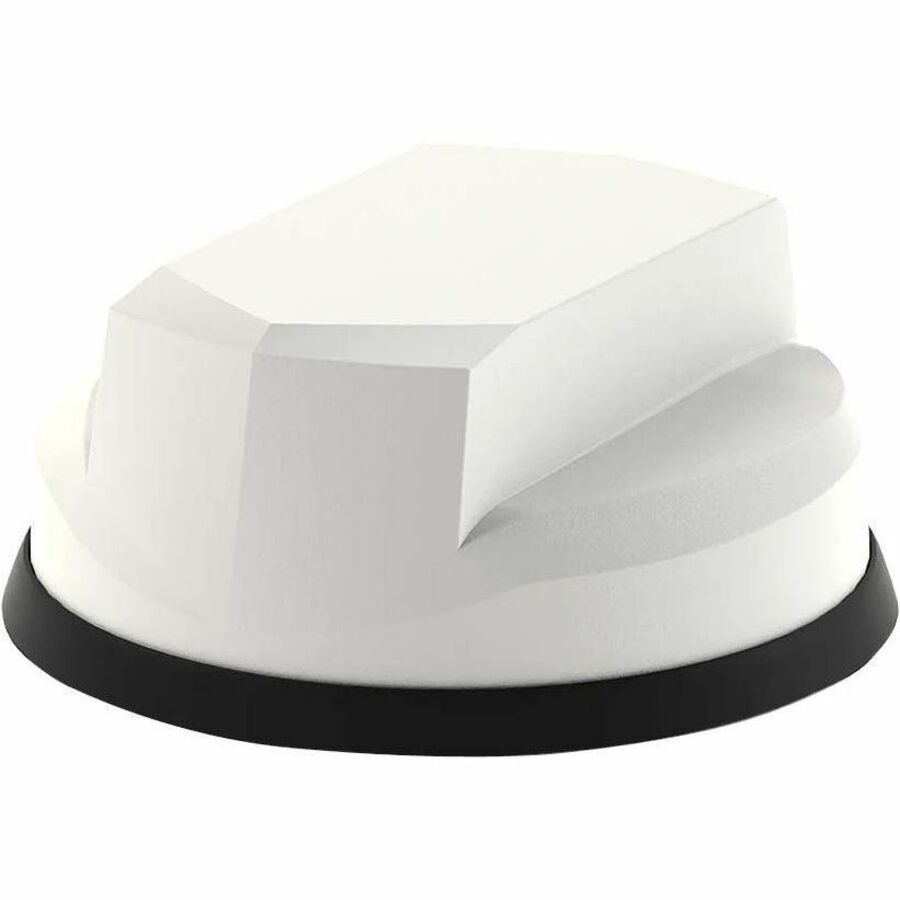

Panorama Antennas L[G]M[X]M[X]-6-60[-24-58] Antenna
Range - RF - 617 MHz to 960 MHz, 1710 MHz to 3800 MHz, 4900 MHz to 6000 MHz - 10 dB - 26 dBi - GPS, GLONASS, In-vehicle Router - White - Panel Mount, Magnetic Mount - Omni-directional - SMA Connector
![Panorama Antennas L[G]M[X]M[X]-6-60[-24-58] Antenna](https://content.etilize.com/900/1064983216.jpg)
About This Product
Overview
The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low profile package.
The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6×6 MiMo WiFi 2.4/4.9-7.2GHz.
The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications.
The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
- The "Great White" 5G version
- Upto 9 functions inside a low profile housing
- Ground plane independant antenna solution
Quick Specifications
- Product Series
- L[G]M[X]M[X]-6-60[-24-58]
- Product Type
- Antenna
- Directivity
- Omni-directional
- Frequency Band Type
- RF
- Operating Frequency Range
- 617 MHz to 960 MHz 1710 MHz to 3800 MHz 4900 MHz to 6000 MHz
- Antenna Gain
- 10 dB
- Antenna Gain (Isotropic)
- 26 dBi
- Voltage Standing Wave Ratio (VSWR)
- < 2.0:1
