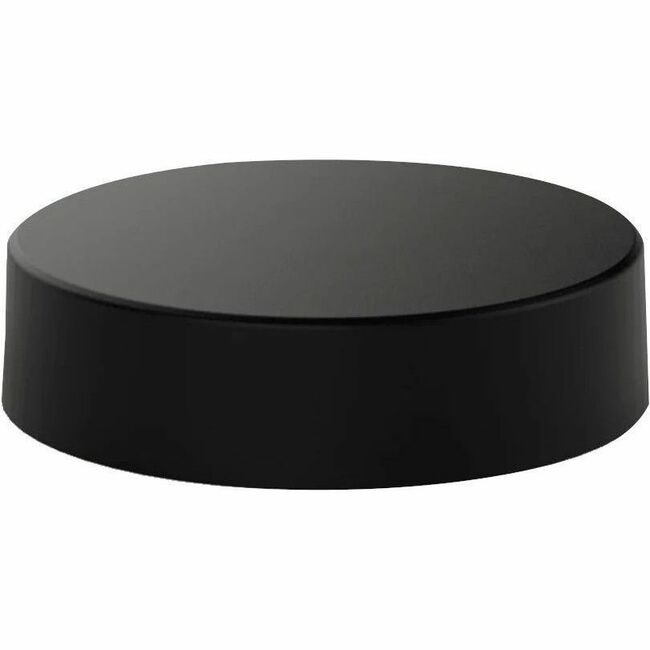

Panorama Antennas Ultra Compact MiMo 3.6/5.0GHz Antenna
Manufacturer: Panorama Antennas Ltd
Mfr. Part: LPPM4-36-55-2SP
3.6 GHz to 5.0 GHz - 4 dBi - Wireless Data Network, Cellular Network - Black - Panel Mount - Omni-directional
About This Product
Overview
The LPPM[X]-36-55 range has been designed to provide MiMo dual band 3.6/5.0GHz coverage for private LTE / CBRS in an ultra low profile package. The compact, robust low-profile housing contains up to four antenna elements with eff effective isolation and low correlation covering 3.4-3.8/4.9-6GHz.
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated RG174 cable the antenna is suitable for many environments.
- Delivers?enhanced performance at 3.6 GHz to 5.0 GHz operating frequency range
- Due to its broader casting range, it provides improved wireless data network signals
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Can be mounted as panel mount
Quick Specifications
- Product Series
- LPPM[X]-36-55-[VAR]
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 3.6 GHz to 5.0 GHz
- Antenna Gain (Isotropic)
- 4 dBi
- Voltage Standing Wave Ratio (VSWR)
- < 2:1
- Color Family
- Black
- Product Color
- Black
