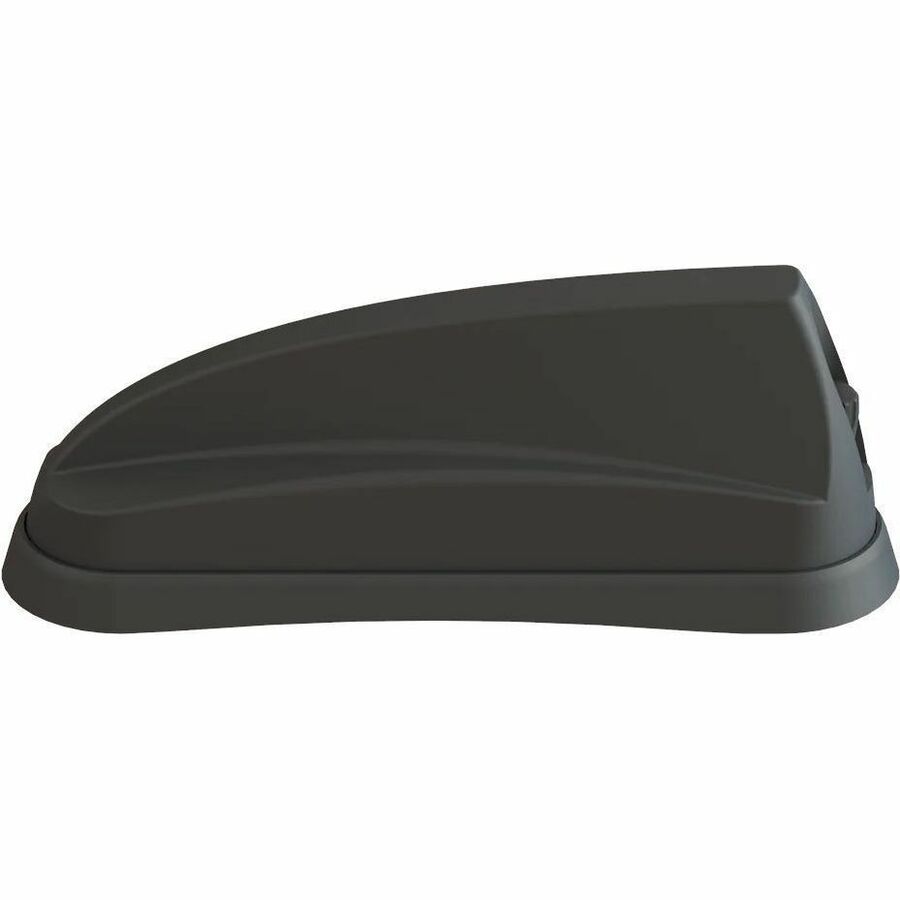

Panorama Antennas SHKG-6-60 Antenna
617MHz - 960MHz, 1710MHz - 3800MHz, 4900MHz - 6000MHz - 26 dB - 9 dBi - Cellular Network, GPS, Vehicle - Black - Panel/Roof-mountable - Omni-directional - SMA Connector
About This Product
Overview
4G/5G MiMo Antenna Discrete OEM Style Sharkfin.
The SHKG 'Sharkee®' range has become a byword for industry leading technology in discrete OEM sharkfin housing. The SHKG-6- 60 brings 5G capability to the product family.
The antenna can be fitted on a metallic or non-metallic panel and still offer similar performance.
The OEM style shark fin housing contains a 2×2 MiMo antenna function for 4G/5G (617-960/1710-6000MHz) and the option of 2×2, 3×3, or 4×4 MiMo dual band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.
The SHKG shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential. Requiring only a single hole mounting, the SHKG reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle's resale value.
- Discreet automotive OEM SharkFin design
- Multiple antenna functions in a single housing
- Single hole mounting - reduces vehicle damage, installation time & cost
- Can be mounted on a metallic or non-metallic panel surface
- Will fit between roof ribs on all major vehicle manufacturers
- Can be retrofitted to a vehicle replacing the factory fitted antenna
- 2×2 MiMo Cellular - 617-960 / 1710-6000MHz
- GPS/GNSS with advanced filtering for LTE Band 13/14
- Optional 2×2, 3×3, or 4×4 MiMo WiFi 2.4/4.9-7.2GHz
- UN ECE R118 Compliant Cable Feeds
Quick Specifications
- Product Series
- SHKG-6-60
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 617MHz - 960MHz 1710MHz - 3800MHz 4900MHz - 6000MHz
- Antenna Gain
- 26 dB
- Antenna Gain (Isotropic)
- 9 dBi
- Connector Type
- SMA
- Color Family
- Black
