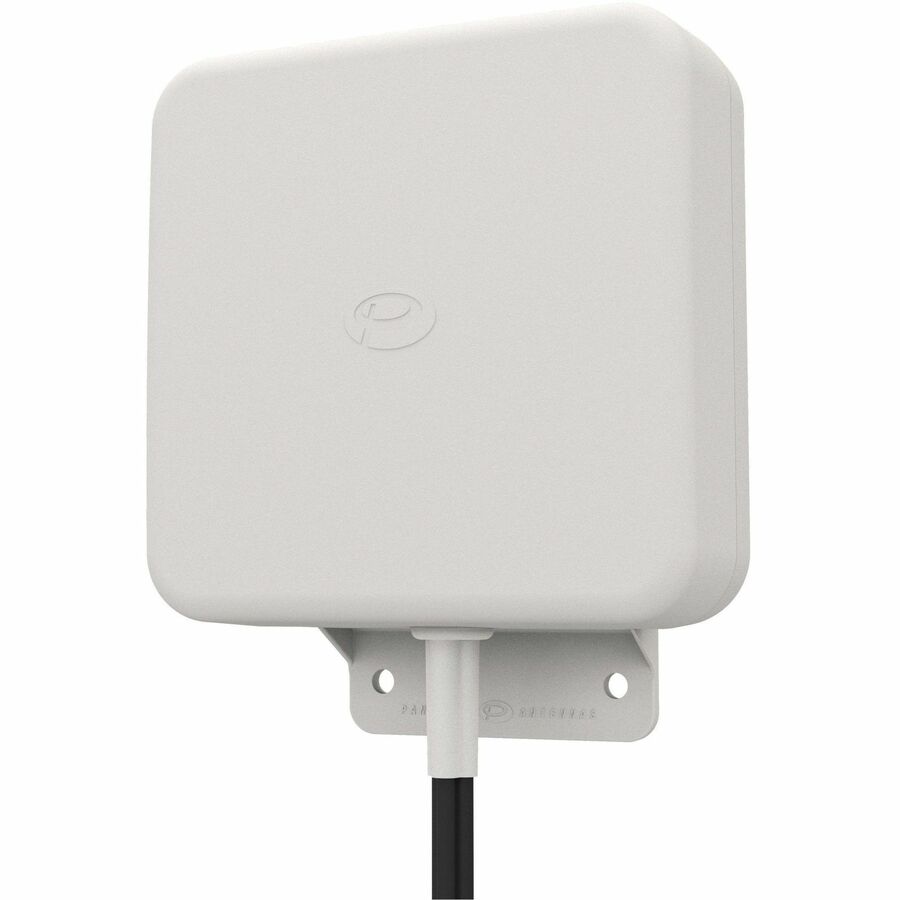

Panorama Antennas WMM4-7-49 Antenna
699 MHz to 798 MHz, 807 MHz to 862 MHz, 880 MHz to 960 MHz, 1427MHz to 1518MHz, 1710MHz to 1920MHz, 1920MHz to 2170MHz, 2300MHz to 2400MHz, 2496MHz to 2690MHz, 3300MHz to 4200MHz, 4400MHz to 5000MHz - 7.7 dBi - Cellular Network - White - Wall/Mast - Omni-directional - SMA Connector
About This Product
Overview
- 4x4 MiMo 4G/5G - 698-960/1710-4900MHz
- Wall or mast mount
- Integrated ultra-low loss cables
The WMM4-7-49 antenna provides 4x4 MiMo solution for global 4G/5G networks from 698-960/1710-4900MHz. Incorporating four separately fed, ultra wideband elements within an IP rated compact housing, the WMM4-7-49 is suitable for a wide range of 4G Cat 18/20 and 5G fixed site and failover applications.
The supplied mounting bracket enables simple wall mounting or mast mounting using the supplied clamp. The omni-directional radiation pattern allows easy placement of the antenna without requiring any directional alignment.
The antenna has integrated ultra-low loss, double shielded CS29 cable which eliminates exposed connection points and simplifies cable management for quick and easy installation. Various connector types and configurations are available to suit different installation requirements and user device.
- Delivers?enhanced performance at 699 MHz to 798 MHz frequency
- Get improved cellular network signal from further away with this antenna
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Can be mounted using either a wall or mast mount
Quick Specifications
- Product Series
- WMM4-7-49
- Product Type
- Antenna
- Directivity
- Omni-directional
- Antenna Gain (Isotropic)
- 7.7 dBi
- Voltage Standing Wave Ratio (VSWR)
- <3:1
- Connector Type
- SMA
- Color Family
- White
- Product Color
- White
