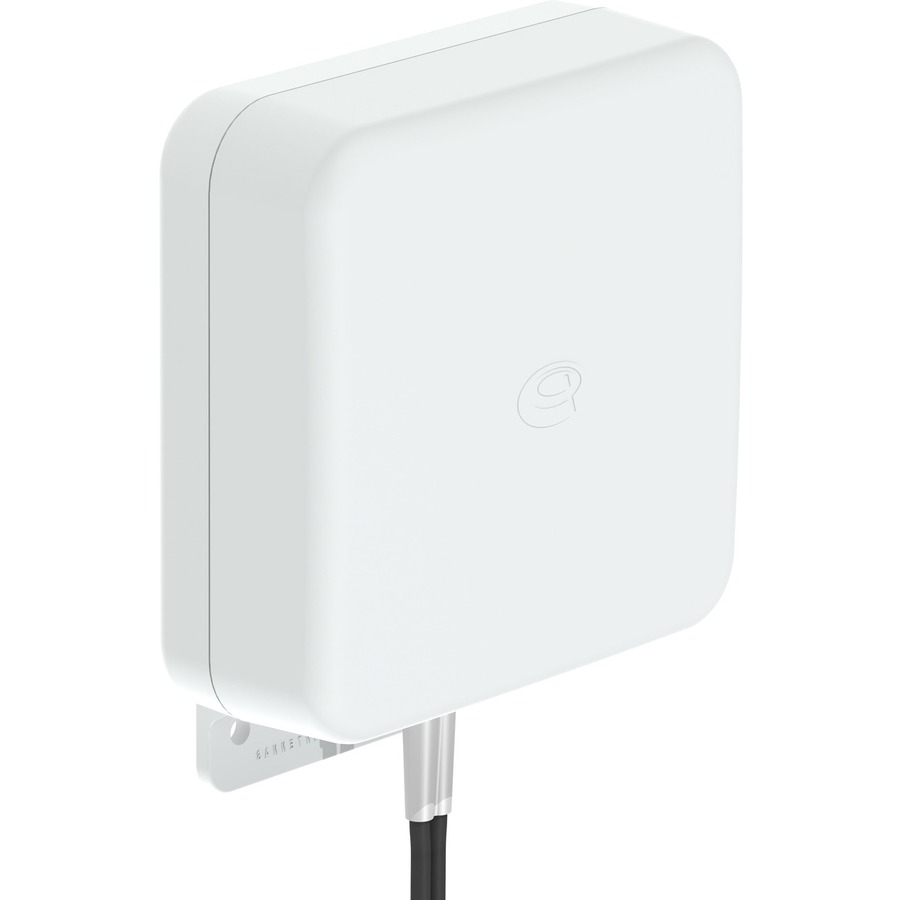

Panorama Antennas External Mount 4G/5G MiMo Antenna
698 MHz to 960 MHz, 1710 MHz to 3800 MHz - 5 dBi - Cellular Network, GPS - White - Desktop/Wall/Mast, External, Pole - Omni-directional - N-connector Connector
About This Product
Overview
Supports MiMo & Diversity across 4G/5G Two wideband elements with gain Durable wall mount housing Suitable for mast, wall and desk mounting
The WMMG antenna provides an innovative and future proof solution for 3G/4G and 3.8GHz 5G networks. Incorporating two separately fed ultra wideband elements in a single housing the WMMG is equipped to provide client side MiMo and diversity support for the networks of today and tomorrow. With 2dBi gain at 698-960MHz, 5dBi gain at 1710-2170MHz and 4dBi gain at 2200-3800MHz the WMMG provides extra gain performance where it is needed most.
The rugged, weatherproof housing is designed for wall mounting. Wall and mast mount brackets are provided.
5 metres (16') of fitted low loss double shielded twin cable minimises exposed connector joints and simplifies cable management for easy installaton.
The WMMG is a cost effective value added product for network operators and service providers ensuring a stable link with improved data rates for subscribers thereby improving satisfaction and retention.
- Designed to operate at 698 MHz to 960 MHz frequency
- This antenna provides enhanced signals for your cellular network
- Antenna can be mounted as desktop/wall/mast
Quick Specifications
- Product Model
- WMMG-7-38
- Packaged Quantity
- 1
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 698 MHz to 960 MHz 1710 MHz to 3800 MHz
- Antenna Gain (Isotropic)
- 5 dBi
- Connector Type
- N-connector
- Product Color
- White
