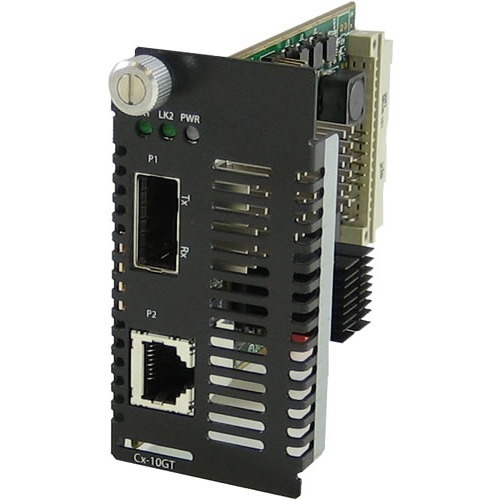

Perle C-10GRT-SFP Media Converter
1 x Network (RJ-45) - Multi-mode, Single-mode - 10 Gigabit Ethernet - 10GBase-T - 0.10 km - 1 x Expansion Slots - SFP+ - 1 x SFP+ Slots - Internal
About This Product
Overview
C-10GRT-SFP - 10 Gigabit Media and Rate Converter Module: 10GBASE-T (RJ-45) [100 m/328 ft.] (CAT6A or better ) to fiber 10GBase-X or copper 10GBase-CX1 SFP+. SFP+ slot (empty).
Transparently connect 10 Gigabit Ethernet links over multimode or single mode fiber. The 10GbE Media Converter comes with one RJ45 10GBase-T port and one pluggable transceiver port that supports fiber to fiber, copper to fiber or copper to copper media conversion. This Media Converter can automatically detect 10/100/1000/10000 Ethernet port speed and do a rate conversion between the two ports if the Ethernet speed is different. The pluggable fiber optics port allows for flexible network configurations using SFP transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs. Designed to be installed in the MCR200 or MCR1900 Modular Chassis System.
- Copper to fiber and copper to copper conversion
- C-10GRT supports 10/100/1000/2500/10000 rate conversion
- Uses a variety of 10G transceivers supplied by Perle, Cisco or other MSA compliant SFP+ and XFPs
- Advanced features -Smart Link Pass-Through, Fiber Fault Alert, Built-in Link Test Generator and Loopback
- High density applications with Perle MCR1900 Media Converter Chassis
- Support for Power Level 1,2,3 as well as high-power Level 4 XFPs
Quick Specifications
- Product Model
- C-10GRT-SFP
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Management Port
- No
- Number of Network (RJ-45) Ports
- 1
- Media Type Supported
- Twisted Pair Optical Fiber
- Fiber Mode Supported
- Multi-mode Single-mode
