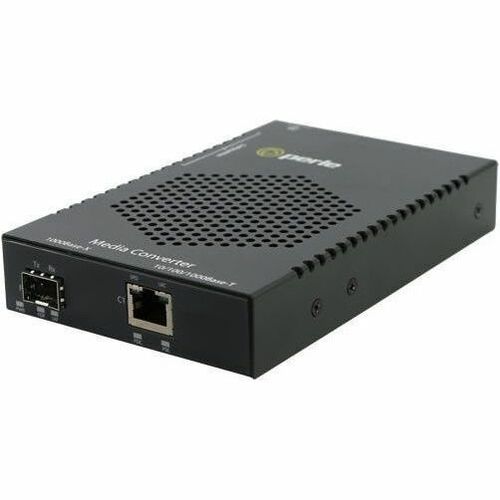

Perle S-1110HP-SFP Transceiver/Media Converter
Network (RJ-45) - 1 x 60W PoE (RJ-45) Ports - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 0.10 km - 1.0 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - AC/DC - Rack-mountable, Rail-mountable, Wall Mountable, Standalone
About This Product
Overview
Perle S-1110HP-SFP Fiber Media Converters transparently connect copper to fiber while providing up to 100 Watts of IEEE 802.3bt compliant Hi-PoE PSE power to standards-based compliant devices such as pan-tilt-zoom (PTZ) security cameras with heaters, LED lighting in building management, and 802.11ax/ac wireless access points.
Perle Hi-PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, Perle Hi-PoE media converters provide power to Powered Devices (PDs) that support the IEEE 802.3bt PoE standard (up to 100W of power) or pre-standard solutions including UPoE, 4PPoE, PoE++, UltraPoE, 4 Pair PoE, etc. As this standard is fully backwards compatible with the existing IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, all of those PD's are also supported. The S-1110HP-SFP Fiber Media Converter features single or dual 10/100/1000Base-T RJ45 ports to power one or two PD's per converter.
- 10/100/1000Base-T to 100/1000Base-X Fiber
- 1 or 2 empty slots for Cisco and other industry standard SFPs
- Supplies IEEE 802.3bt Hi-PoE PSE (up to 100W) power
- Compatible with IEEE 802.3af PoE and IEEE 802.3at PoE+ PoE devices
- Dual or Single 10/100/1000Base-T PoE ports
- Advanced features: PD Reset, Fiber redundancy, Smart Link Pass-Through, Fiber Fault Alert, Auto-MDIX and Loopback
Quick Specifications
- Product Series
- S-1110HP-SFP
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Number of 60W PoE (RJ-45) Ports
- 1
- PoE Port Type
- PSE
- Media Type Supported
- Twisted Pair Optical Fiber
- Maximum Distance Supported
- 0.10 km
