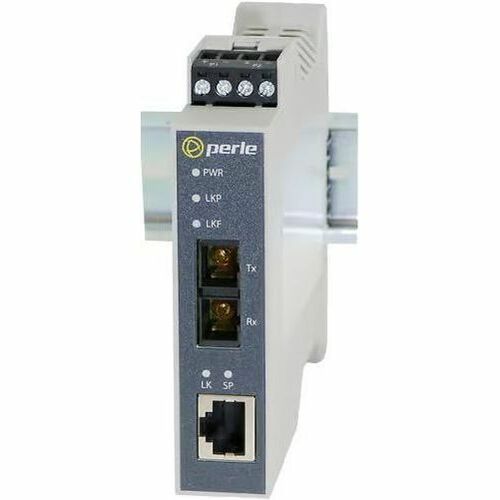

Perle SRS-1110-GSC10 Media Converter
1 x Network (RJ-45) - 2 x SC Ports - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-LX/LH - 10 km - DIN Rail Mountable
About This Product
Overview
SRS-1110-GSC10- 10/100/1000 Industrial Media Rate Converter: 10/100/1000BASE-T (RJ-45) [100 m/328 ft] to 1000BASE-LX/LH 1310 nm single mode (SC) [10 km/6.2 miles]. Ruggedized to IEC 61850-3/IEEE 1613, -40F to +167F (-40C to +75C) extended operating temperature support. DIN Rail case, terminal block (Combicon) power connector for external power source ..
Perle SRS-1110-G DIN Rail Media Converters transparently connect UTP CAT5/6/7 copper to Gigabit dual fiber in electric utility and power substation environments. With an extended operating temperature range of -40C to +75C and advanced electrical certifications for IEC 61850-3, IEEE1613 and EN 61000-4-16, these fiber to Ethernet converters meet all requirements necessary to operate safely in the harsh electrical environments associated with power utility and substation deployments.
The SRS Media Converters are also designed to operate in hazardous industrial locations. With numerous certifications, (Hazloc: ATEX Class 1 Zone 2 / ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D) you are ensured safe and reliable operation in locations where volatile flammable gases, flammable liquid?produced vapors, or combustible liquid?produced vapors are handled, processed, or used.
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- Meet the multiple network connectivity needs of today's network environment with this 3 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
- The DIN Rail Mountable provides convenient installation
Quick Specifications
- Product Series
- SRS-1110-F
- Product Model
- SRS-1110-GSC10
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 3
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of SC Ports
- 2
- Media Type Supported
- Twisted Pair Optical Fiber
