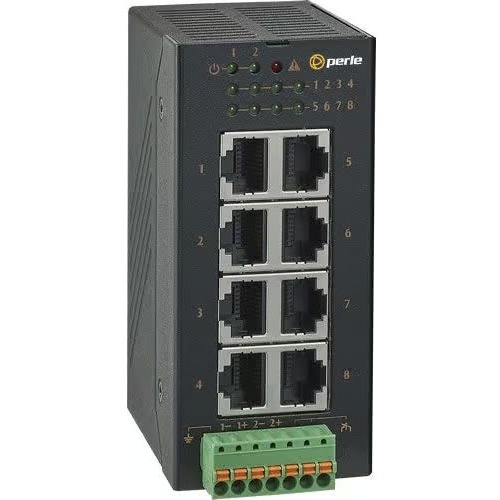

Perle IDS-108GE-XT Ethernet Switch
8 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 5.55 W Power Consumption - Twisted Pair - DIN Rail Mountable, Compact - 5 Year Limited Warranty
About This Product
Overview
Perle IDS-108GE Industrial Gigabit Ethernet Switches are designed for easy deployment in industrial environments with harsh operating conditions and limited space. Designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, infrastructure, transportation, security, oil and gas, and mining the IDS-108GE Switches are economical easy-to-use devices, that provide essential industrial Ethernet networking functionality.
These unmanaged switches support 9 to 55VDC redundant power input and provide a relay alarm for power failure. The full/half-duplex auto-negotiation and auto MDI/MDIX operation simplifies installation and setup for convenient connection of a variety of network devices. And, QoS support allows for traffic prioritization and effective management of resources.
For automation and industrial control systems using EtherNet/IP or PROFINET, these rugged, DIN rail mountable switches with metal housing provides security and easy installation (mounting kit is included).
- 8 x RJ45 ports with 10/100/1000 Mbps on all ports
- Redundant dual power input 12/24/48 VDC
- Reverse polarity protection
- Fan-less design with no moving parts
- -40 to 75C industrial operating temperature support
- QoS (Quality of Service) prioritized messages
Quick Specifications
- Product Model
- IDS-108GE-XT
- Product Type
- Ethernet Switch
- Features
- Fanless
- Total Number of Network Ports
- 8
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x Gigabit Ethernet Network
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
