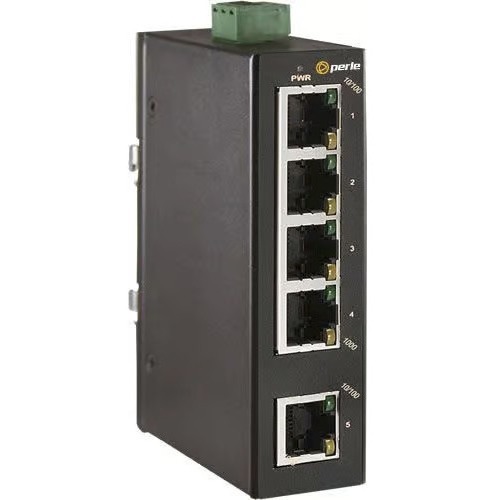

Perle IDS-105FE Ethernet Switch
5 Ports - Fast Ethernet - 100Base-TX, 100Base-FX - 2 Layer Supported - 1.82 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable, Compact - 5 Year Limited Warranty
About This Product
Overview
The Perle IDS-105FE Industrial Ethernet Switch is designed for easy deployment in industrial environments with harsh operating conditions and limited space. Designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, infrastructure, transportation, security, oil and gas, and mining the IDS-105FE Switch is an economical easy-to-use device, that provide essential industrial Ethernet networking functionality.
This unmanaged switches support 9 to 55VDC redundant power input and provide a relay alarm for power failure. The full/half-duplex auto-negotiation and auto MDI/MDIX operation simplifies installation and setup for convenient connection of a variety of network devices. And, QoS support allows for traffic prioritization and effective management of resources.
For automation and industrial control systems using EtherNet/IP, this rugged, DIN rail mountable switches with metal housing provides security and easy installation (mounting kit is included).
- 5 x RJ45 ports with 10/100 Mbps on all ports
- Redundant dual power input 12/24/48 VDC
- Reverse polarity protection
- Fan-less design with no moving parts
- -10 to 60C industrial operating temperature support
- QoS (Quality of Service) prioritized messages
Quick Specifications
- Product Model
- IDS-105FE
- Product Type
- Ethernet Switch
- Features
- Fanless
- Total Number of Network Ports
- 5
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 5 x Fast Ethernet Network
- Media Type Supported
- Twisted Pair Optical Fiber
- Ethernet Technology
- Fast Ethernet
