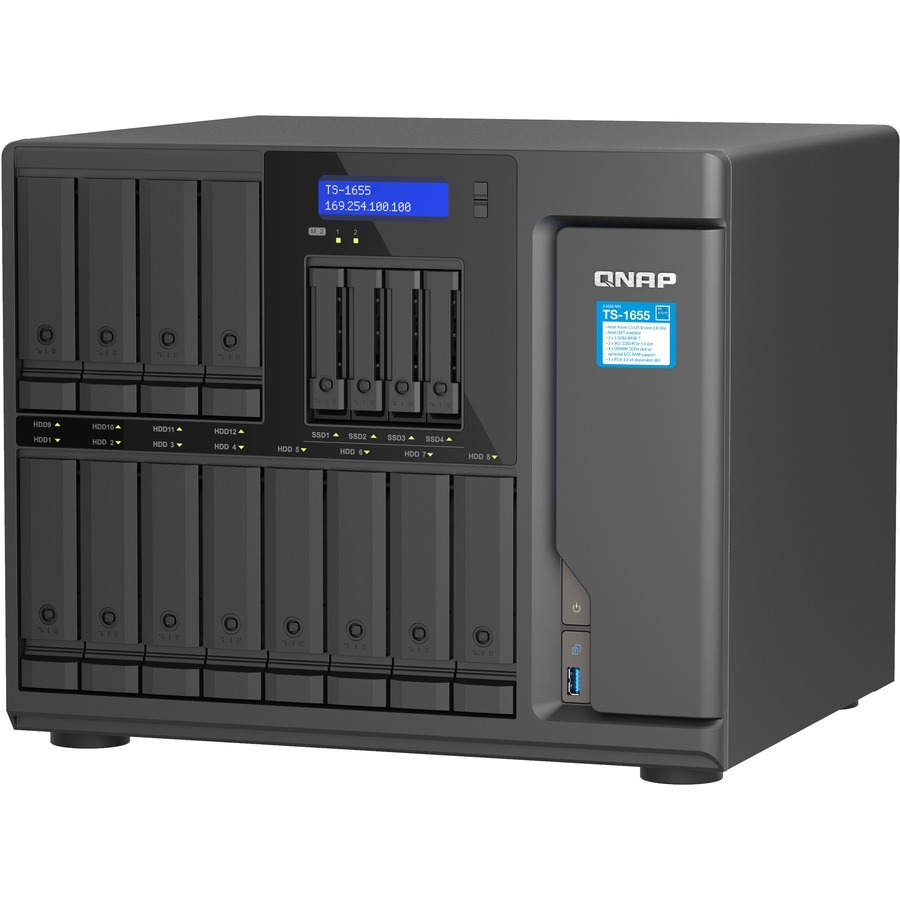

QNAP Turbo NAS TS-1655-8G SAN/NAS Storage System
1 x Intel Atom C5125 Octa-core (8 Core) 2.80 GHz - 12 x HDD Supported - 0 x HDD Installed - 12 x SSD Supported - 0 x SSD Installed - 8 GB RAM DDR4 SDRAM - Serial ATA/600 Controller - RAID Supported - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - 12 x Total Bays - 12 x 2.5"/3.5" Bay - 3 x Total Slot(s) - 2.5 Gigabit Ethernet - HDMI - 4 USB Port(s) - Network (RJ-45) - QuTS hero 5.0.1 - IPv4, IPv6, DHCP, CIFS/SMB, AFP, NFSv3, FTP, FTPS, SFTP, TFTP, HTTP, ... - 5 GB Flash Memory Capacity
About This Product
Overview
TS-1655 | Powerful 2.5GbE hybrid storage solution, 8-core high performance and 16-bay high capacity, and long-term availability
Balance performance and cost with hybrid storage. Designed for diversified business IT environments, the high-capacity TS-1655 has twelve 3.5-inch SATA drive bays (for HDDs) and four 2.5-inch SATA drive bays (for SSDs) with 2.5GbE high-speed connectivity. Fueled by an immense 8-core Intel Processor, the TS-1655 presents a secure, scalable, and complete business-ready storage solution for cross-team file sharing, collaboration, backup & disaster recovery, virtualization, and intensive data transmission. The TS-1655 will be available and supported by QNAP for an extended period (up to 2027), ideal for businesses requiring matching NAS models deployed in multiple locations.
- Dual 2.5GbE connectivity
High-speed 2.5GbE accelerates intensive file access, large backup/restoration tasks, virtualization, and multimedia transfer.
- SSD caching and AI acceleration
Two M.2 NVMe PCIe Gen 3 slots allow implementing SSD cache acceleration, SSD storage pool, or a Coral M.2 accelerator for faster image recognition.
- Flexible PCIe expansion
Three PCIe slots allow for installing 5/10/25GbE adapters, Fibre Channel cards, or QM2 cards to increase application performance.
- Virtual machines and containers
Host virtual machines and containerized apps on one device to optimize resource utilization and IT budgeting. Supports SR-IOV.
- Hybrid cloud
Realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency cloud data access.
- Storage scalability
Satisfy ever-growing storage needs by connecting flexible and economical QNAP expansion enclosures.
Eight cores up to 2.8 GHz, Intel® QuickAssist Technology, and up to 128 GB memory
The TS-1655 adopts the Intel® Atom® C5125 8-core 2.8 GHz processor that supports Intel® QuickAssist Technology (QAT), offloading computationally-intensive compression and improving IPsec/SSL cryptography performance. The TS-1655 comes with four UDIMM DDR4 slots (8 GB preinstalled) that can be upgraded to 128 GB for higher workloads. Error-Correcting Code memory is also supported to deliver server-grade performance and reliability for rugged enterprise IT environments as a cost-efficient NAS solution.
- SAN/NAS Storage System offers maximum storage efficiency and convenience
- Robust scalability up to 12 drives to let you expand limitlessly
- Through RAID levels (0, 1, 5, 6, 10, 50, 60, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for fast, easy, and convenient access and retrieval of data and information
- Enjoy quick web browsing and efficiently deal with your crazy work weeks or playtime marathons with the Intel Atom 2.80 ghz processor that kicks execution into high gear
- RAID technology - data reliability, fault tolerance and improved overall performance
- Tower form factor is ideal for running internal applications, serving public websites or storing sensitive customer data with maximum productivity
- 2.5 Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
- QuTS hero 5.0.1 OS with all the creative and productive tools you need
Quick Specifications
- Product Line
- Turbo NAS
- Product Model
- TS-1655-8G
- Product Type
- SAN/NAS Storage System
- Number of Hard Drives Supported
- 12
- Number of Hard Drives Installed
- 0
- Number of Solid State Drive Supported
- 12
- Number of Solid State Drive Installed
- 0
- Flash Memory Capacity
- 5 GB
