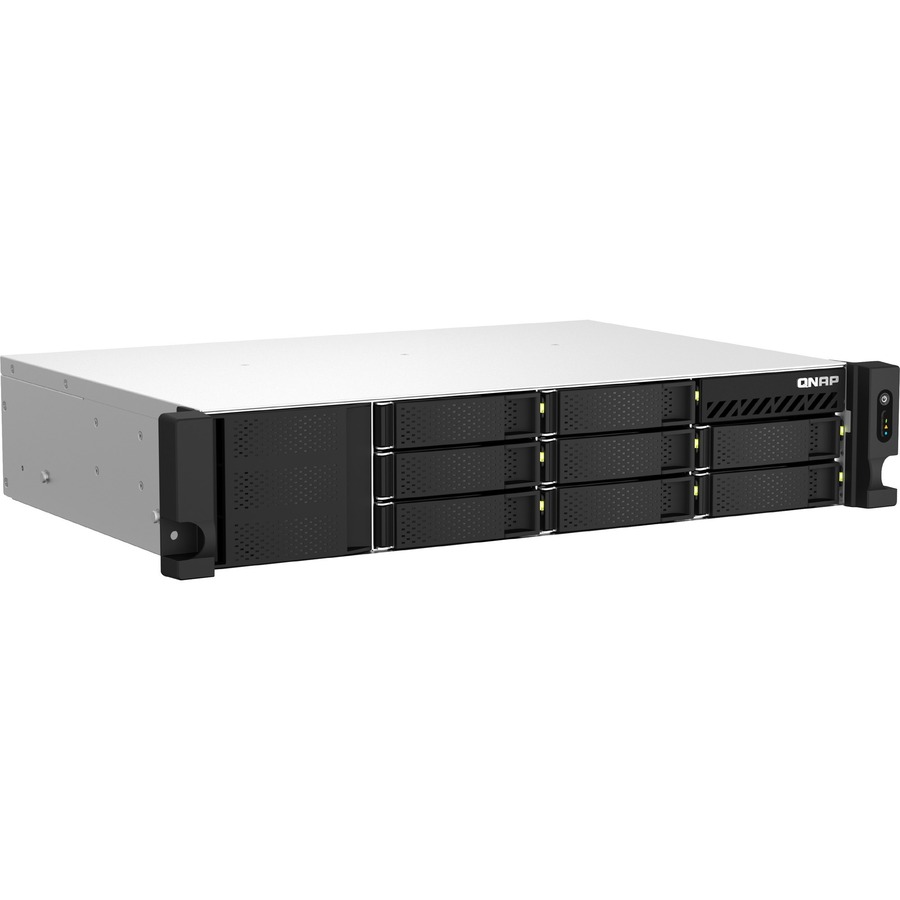

QNAP TS-873AEU-4G SAN/NAS Storage System

The compact 2U rackmount TS-873AeU combines an AMD Ryzen™ V1000 series V1500B quad-core/eight-thread 2.2 GHz processor and dual-2.5GbE connectivity in one chassis. Compared to its previous generation, the TS-873AeU is enhanced with two M.2 PCIe Gen3 x 1 ports for NVMe SSD caching or Edge TPU empowered AI image recognition. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-873AeU the preeminent choice to tackle resource-demanding applications and tasks, such as virtual machines or multi-user intensive access. The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling.

• Dual-2.5GbE connectivity

  Features two 2.5GbE ports. Up to 5 Gbps transfer speeds can be achieved by using port trunking.

• PCIe expandability

  Features one PCIe Gen3 x 8 port. Add extra functionality with PCIe cards, including 10/25GbE ports, QM2, or Fibre Channel.

• Optimized SSD performance

  Features two M.2 PCIe Gen3 ports to install NVMe SSDs and empower Qtier™ and SSD caching technology.

• Hybrid cloud storage

  Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.

• Virtual machine applications

  Host multiple virtual machines and containers to run a wide range of applications.

• 2U Short depth design

  The rackmount NAS has a short-depth design of only 30 cm. It is perfectly suited for installation in a compact rack, or places with a lot of cabling.

2U Short depth design for up to 38% reduction in size

The 2U rackmount TS-873AeU has a short depth design of only 11.7 inches (297.4 mm), making it an excellent choice for smaller racks, wall-mount AV rack cabinets, and network rack cabinets. The space saved by the short depth design can be reserved for cabling or ventilation. The TS-873AeU is space-saving for flexible deployment and is especially suitable for multiple locations and applications including offices, audiovisual rooms, and security surveillance recording.

• CPU

  AMD Ryzen™ V1500B 4 cores/8 threads 2.2 GHz processor

• Memory

  4 GB DDR4 SODIMM (up to 64 GB)

  Note: Supports ECC RAM (cannot be used together with non-ECC RAM)

Upgrade to 2.5GbE networking

The TS-873AeU comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. 5GbE speeds can also be attained by using Port Trunking.
