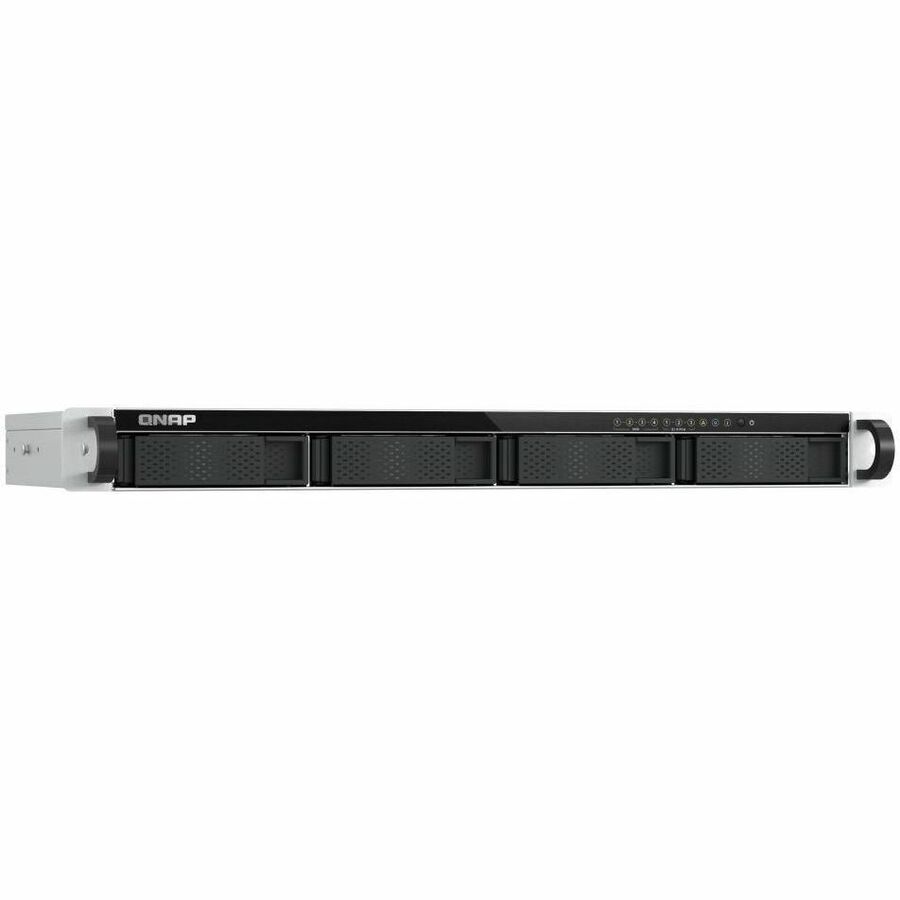

QNAP TS-H765EU-8G-US SAN/NAS Storage System
Intel Atom x7405C Quad-core (4 Core) - 4 x HDD Supported - 0 x HDD Installed - 4 x SSD Supported - 0 x SSD Installed - 8 GB RAM DDR5 SDRAM - Serial ATA/600, Serial ATA/300 Controller - RAID Supported - 0, 1, 5, 6, 10, JBOD RAID Levels - 4 x Total Bays - 4 x 3.5" Bay - 2.5 Gigabit Ethernet - Wireless LAN - 2 USB Port(s) - 1 USB 2.0 Port(s) - Network (RJ-45) - QuTS hero h5.2.3 - FTP, SFTP, TFTP, SSL/TLS, FXP, NFS, NFSv3, NFSv4, AFP, CIFS/SMB, SNMPv2, ... - 8 GB Flash Memory Capacity - 1U
About This Product
Overview
1U short-depth design for flexible deployment
The TS-h765eU has a shorter chassis depth of only 12 inches (292.1mm), making it easy to install in small cabinets and various space-limited environments, including factories, small offices, surveillance rooms, audiovisual rooms, or in-vehicle applications.
- 1U short-depth design, Intel® Atom 4-core processor (Up to 3.4GHz)
- 3x E1.S/M.2 PCIe NVMe slots, 2 x 2.5GbE, USB 3.2 Gen 1 (5Gbps)
- Long-term availability (until 2031)
- The 1U short depth of only 292.1mm (12 inches) is suited for small media cabinets or wall-mount network racks.
- Built-in high-performance and low power consumption DDR5 RAM supports In-Band ECC (IBECC) for data reliability. Up to 16GB RAM can be installed.
- Flexibly upgrade to high-speed 10GbE by installing two E1.S to 10GbE network modules (QXG-ES10G1T).
- Attain faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.
- Connect a QNAP's short-depth USB JBOD TR-004U to the TS-h765eU to support up to 144 TB capacity (using 24 TB HDDs in RAID 5).
- The TS-h765eU will be available and supported by QNAP for an extended period, up to 2031.
Quick Specifications
- Product Model
- TS-H765EU-8G-US
- Product Type
- SAN/NAS Storage System
- Number of Hard Drives Supported
- 4
- Number of Hard Drives Installed
- 0
- Number of Solid State Drive Supported
- 4
- Number of Solid State Drive Installed
- 0
- Flash Memory Capacity
- 8 GB
- Processor Manufacturer
- Intel
