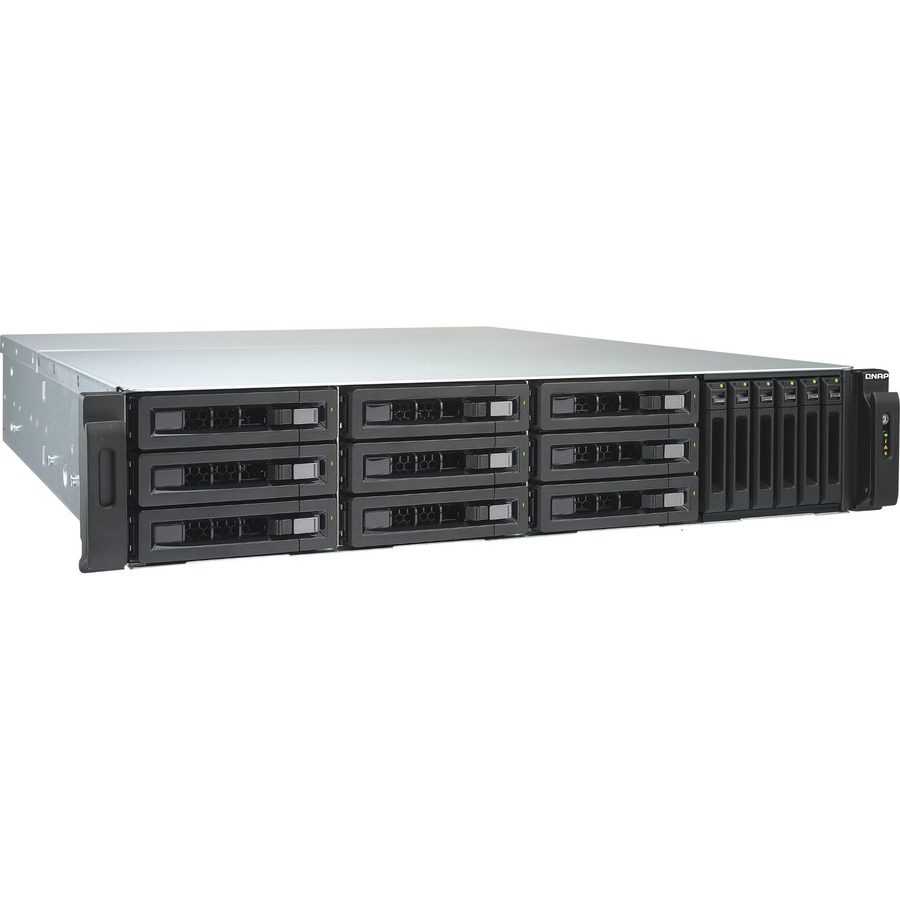

QNAP TVS-EC1580MU-SAS-RP-16G SAN/NAS Storage System
1 x Intel Xeon E3-1246 v3 Quad-core (4 Core) 3.50 GHz - 15 x HDD Supported - 15 x SSD Supported - 16 GB RAM DDR4 SDRAM - 12Gb/s SAS Controller - RAID Supported - 0, 1, 5, 6, 10, 50, 60 RAID Levels - 15 x Total Bays - 6 x 2.5" Bay - 9 x 2.5"/3.5" Bay - 2 x Total Slot(s) - Gigabit Ethernet - HDMI - 8 USB Port(s) - 4 USB 2.0 Port(s) - Network (RJ-45) - QTS 4.2 - CIFS/SMB, AFP, NFS, FTP, FTPS, HTTP, HTTPS, WEBDAV, CIFS, AFP 3.3, SNMPv3, ... - 512 MB Flash Memory Capacity - 2U
About This Product
Overview
15-bay 12Gbps SAS-enabled hybrid NAS supporting 3.5" & 2.5" drives & NAS/iSCSI/IP-SAN
QNAP TVS-EC1580MU-SAS-RP is the world's first unified NAS supporting Auto Tiering to deliver ongoing optimization of data across high-performance SSD, 12Gbps SAS drives and high-capacity SATA disks. Powered by an Intel® Xeon E3 CPU, the TVS-EC1580MU-SAS-RP delivers exceptional performance and supports cross-platform file sharing, comprehensive backup solutions, iSCSI & virtualization applications, and more practical business functions. With the powerful QTS operating system, the TVS-EC1580MU-SAS-RP performs as a reliable, scalable and unbeatable unified and tiered storage solution for businesses.
- 3,800+ MB/s throughput and 238,000+ IOPS
- Qtier Technology drives Auto Tiering for optimal storage efficiency
- Built-in 256GB mSATA modules for caching, beneficial to IOPS-demanding applications
- Scalable design, up to 143 drives
- Virtualization-ready, centralized data storage, backup, sharing and disaster recovery
- Backward compatible with SAS/SATA 6Gbps drives
- SAN/NAS Storage System offers maximum storage efficiency and convenience
- Holds up to 15 HDDs to let you expand limitlessly
- Through RAID levels (0, 1, 5, 6, 10, 50, 60), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for dependable data storage with maximum usability
- Experience unmatched performance, built-in security and remote management capabilities with Intel Xeon 3.50 ghz processor
- Rack-mountable form factor for added reliability and dependability
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- It's qts 4.2 operating system offers powerful platform to efficiently run routine applications
Quick Specifications
- Product Model
- TVS-EC1580MU-SAS-RP-16G
- Product Type
- SAN/NAS Storage System
- Number of Hard Drives Supported
- 15
- Number of Solid State Drive Supported
- 15
- Flash Memory Capacity
- 512 MB
- Number of Processors Installed
- 1
- Processor Manufacturer
- Intel
- Processor Type
- Xeon
