QCT 1G/10G Datacenter & Enterprise-Class Ethernet Switch

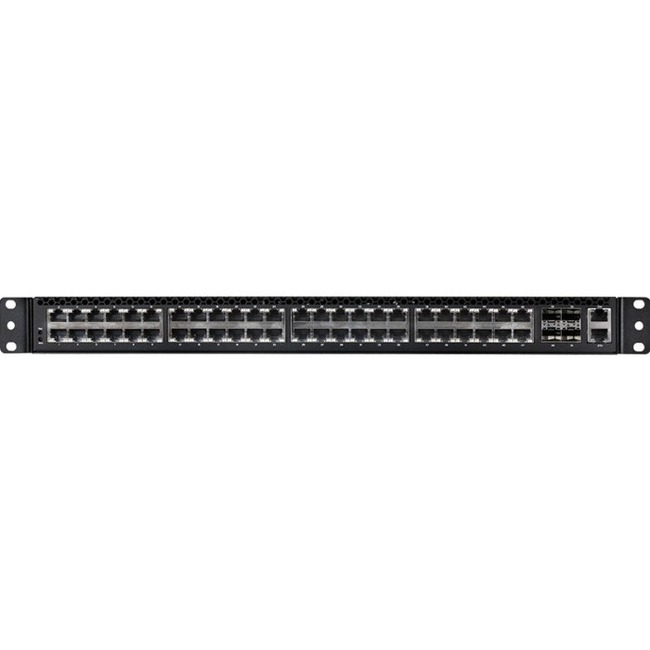

The QuantaMesh T1048-LB9 is a high performance layer 2/3/4 Ethernet switch with 48 10Base-T/100Base-TX/1000Base-T ports and 4 dual speed 1GbE/10GbE SFP+ ports in a compact rack unit size.

Simplicity

The QuantaMesh T1048-LB9 can be managed through an industry standard command-line Interface (CLI) which reduces training and operating costs. The QuantaMesh T1048-LB9 also supports Simple Network Management Protocol (SNMP) both from standard MIB and private MIB for network administrator to easily configure, monitor, and manage operation remotely. The Auto-Installation feature implemented in the QuantaMesh T1048-LB9 helps centralized management to simplify deployment of a truly plug-and-play experience. With the evolution from IPv4 to IPv6, the QuantaMesh T1048-LB9 is a IPv6 integrated management device.

High Availability

The QuantaMesh T1048-LB9 is designed for high availability from both hardware and software perspective. The key features include:

• 1+1 hot-swappable power supplies
• Out-of-band management support
• Spanning Tree with Guarding Features
• Up to 64 gropus of LACP with per group 8 member ports
• Multi-chassis Link Aggregation (MLAG)
• Up to 32 paths ECMP routing for load balancing and redundancy
• Virtual Router Redundancy Protocol (VRRP)

The QuantaMesh T1048-LB9 is a fully layer 2 and layer 3 routing switch that supports advanced IPv4 and IPv6 routing features such as OSPF, OSPFv3, BGP4 and ECMP. The multicast routing features for IGMP v1/v2/v3, PIM-DM/SM, MLD v1/v2 and PIM-DM6/SM6 are all supported in the QuantaMesh T1048-LB9.

Software Defined Network (SDN)

SDN has emerged as a new approach to support open, vendor-agnostic, and programmable networks. T1048-LB9 is equipped with OpenFlow v1.3 features to fulfill the needs of modern data center applications.
