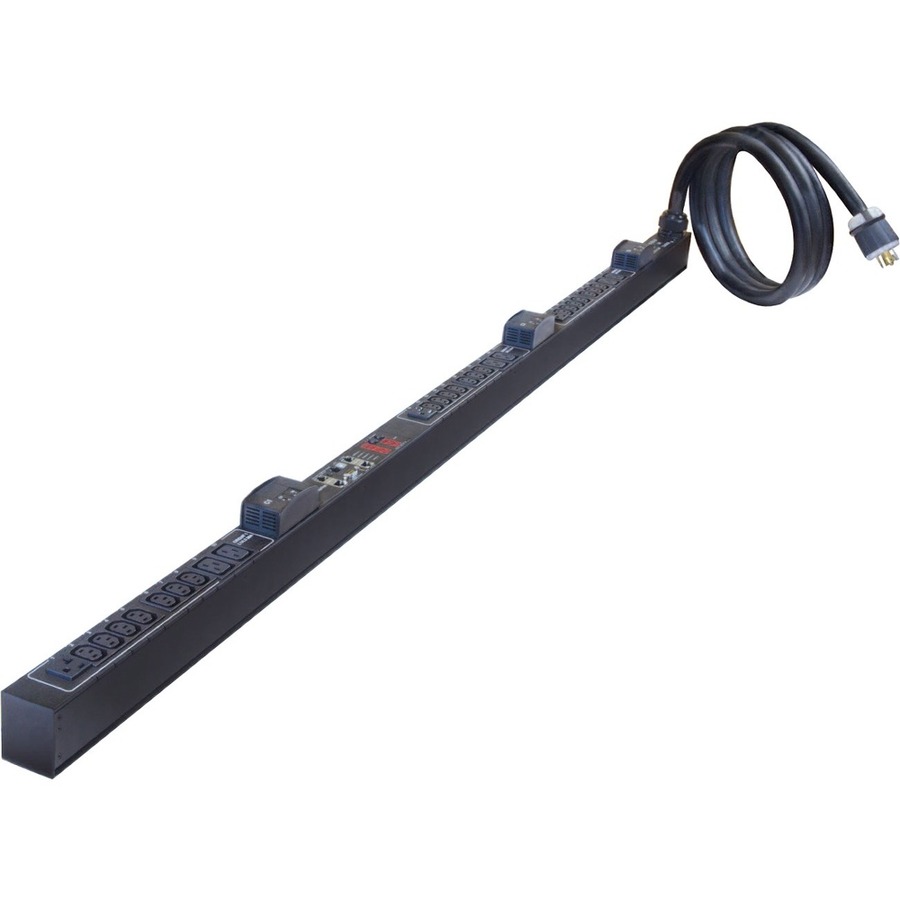

Raritan PX2-2493 24-Outlet PDU

Manufacturer: Legrand Group
Mfr. Part: PX2-2493

IEC 60309 2P+E - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 7700 W - Network (RJ-45) - 0U/1U - Vertical - Rack-mountable

Raritan PX2-2493 24-Outlet PDU

About This Product

Overview

Rack Power Distribution Units (PDUs)

The PX series boasts the most reliable and sophisticated rack PDUs on the market. It offers metering at the inlet, outlet, and PDU circuit breaker level. And tracks current, voltage, power, power factor, and energy usage within 1% billing-grade accuracy. In short, it helps you to better manage existing power capacity, and save energy.

But the PX series offers more than reliable power distribution and metering. It also supports sensors that ensure your equipment is operating in a safe environment. And remote outlet switching to ensure proper provisioning and avoid tripped circuit breakers. Or reboot hung servers. All without stepping foot in the data center.

We offer hundreds of models that meet all your needs. Whether you have a small, medium, or large data center; densely packed 400V three-phase racks; high power blade servers; or a lights-out colo deployment -- there's a PX just for you. See more reasons to consider the PX below.

  • PDU provides power control as remote controlled relay & load monitoring
  • IEC 60320 C19 receptacle type to ensure maximum dependability and optimal performance
  • IEC 60309 2P+E plug/connector type for efficient connectivity and feasible power output
  • 230 V AC input voltage for optimal performance with maximum usability
  • 230 V AC output voltage for optimal performance with maximum feasibility

Quick Specifications

Product Series
PX2
Product Model
PX2-2493
Product Type
PDU
Plug/Connector Type
IEC 60309 2P+E
Plug/Connector Detail
1 x IEC 60309 2P+E
Receptacle Type
IEC 60320 C19 IEC 60320 C13
Receptacle Detail
4 x IEC 60320 C19 20 x IEC 60320 C13
Protection Type
Overload Protection
