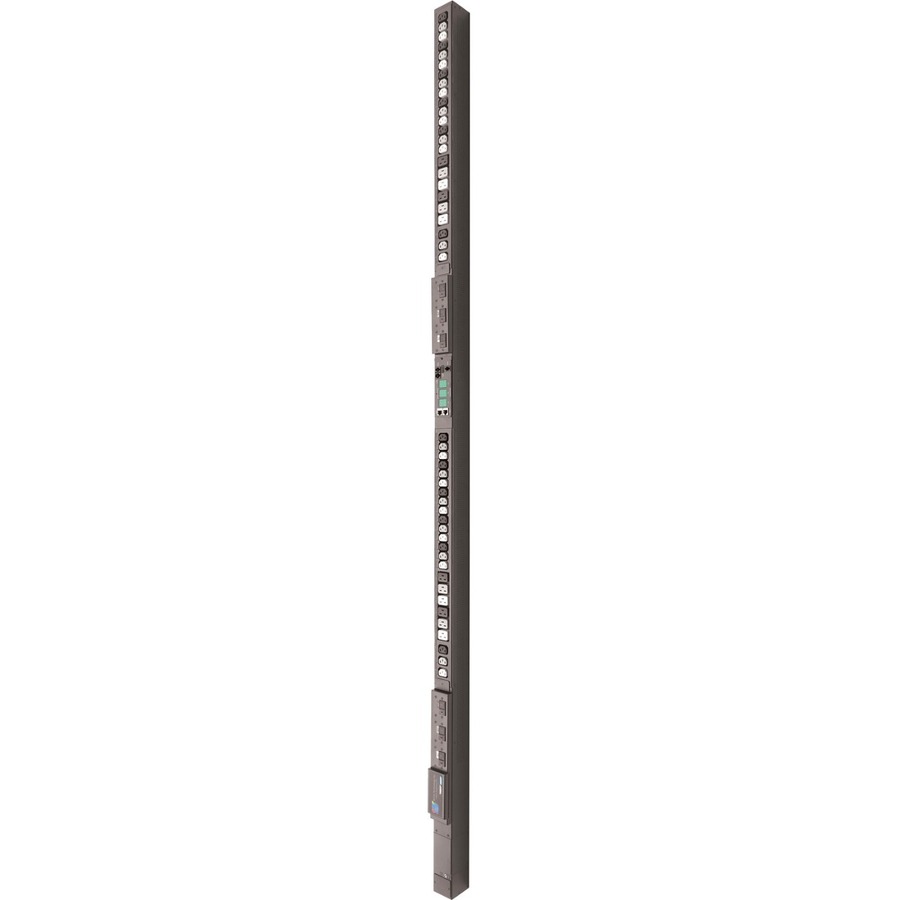

Server Technology Smart POPS PRO2 C2SG48TE-YQME2M99 48-Outlets PDU

Manufacturer: Server Technology, Inc
Mfr. Part: C2SG48TE-YQME2M99

Switched - IEC 60309 3P+N+G 9Hr 60A - 30 x IEC 60320 C13, 18 x CX - 230 V AC - Network (RJ-45) - Rack-mountable, Cabinet-mountable - Hot-swappable

Server Technology Smart POPS PRO2 C2SG48TE-YQME2M99 48-Outlets PDU

About This Product

Overview

The Server Technology® PRO2 Smart POPS PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® and POPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Smart POPS "Primary" PDU can be connected to as many as three (with optional module) PRO2 Smart POPS "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

  • Remotely control individual outlets for rebooting of locked equipment with switched PDUs
  • IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
  • Three Phase phase PDU for reliable performance with maximum productivity
  • IEC 60309 3P+N+G 9Hr 60A plug/connector type for better, dependable connectivity and desired power output
  • 230 V AC input voltage for better reliance and maximum dependability

Quick Specifications

Product Line
Smart POPS
Product Series
PRO2
Product Model
C2SG48TE-YQME2M99
Product Type
PDU
PDU Type
Switched
Phase
Three Phase
Plug/Connector Type
IEC 60309 3P+N+G 9Hr 60A
Receptacle Type
IEC 60320 C13 CX
