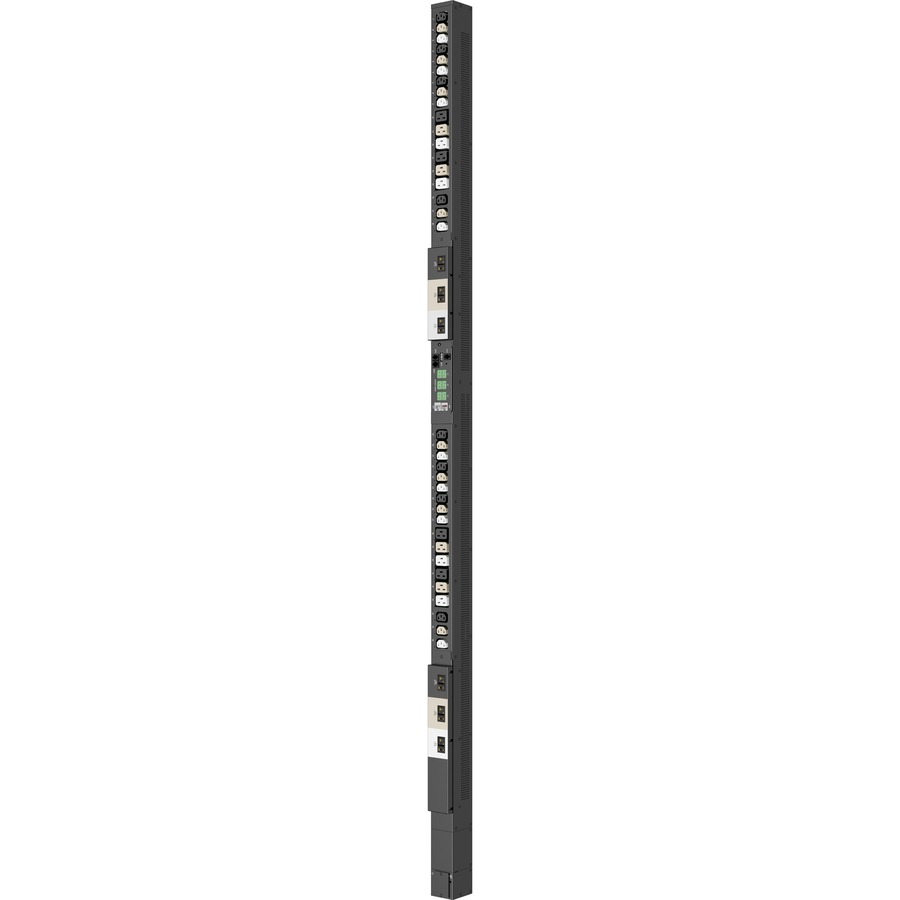

Server Technology PRO2 C2W42CE-DFME2M00 42-Outlets PDU

Manufacturer: Server Technology, Inc
Mfr. Part: C2W42CE-DFME2M00

Switched - CS8365 - 42 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable

Server Technology PRO2 C2W42CE-DFME2M00 42-Outlets PDU

About This Product

Overview

The Server Technology® PRO2 Smart/Switched POPS PDU provides control of outlet power(Switched only) and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® and POPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output (POPS only). These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Smart/Switched POPS "Master" PDU can be connected to as many as three (with optional module) PRO2 Smart/Switched POPS "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

  • Network Monitoring
  • Temperature/ Humidity Monitoring
  • Branch Current Monitoring
  • High-Density Outlet Technology
  • Flexible Mounting
  • Hot-Swap Network Card
  • Auto-Flip Current Display
  • Branch Circuit Protection
  • High Retention Locking Outlets
  • Color Identification

Quick Specifications

Product Series
PRO2
Product Model
C2W42CE-DFME2M00
Product Type
PDU
PDU Type
Switched
Phase
Three Phase
Plug/Connector Type
CS8365
Receptacle Type
IEC 60320 C13
Receptacle Detail
42 x IEC 60320 C13
