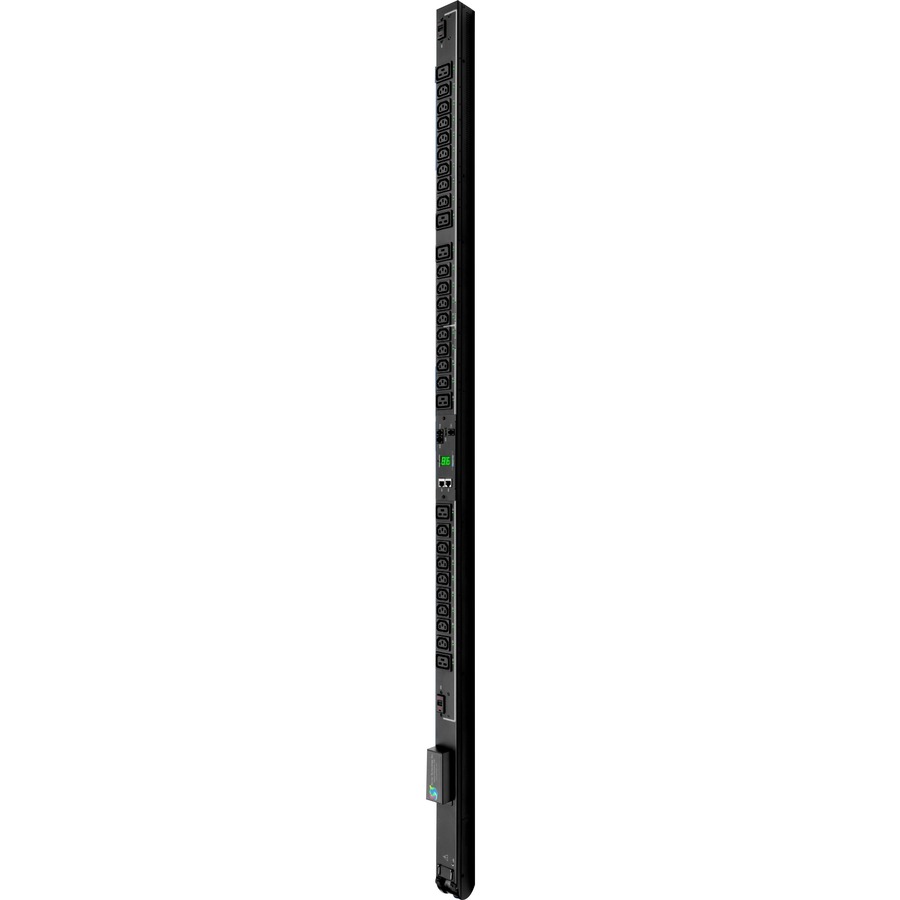

Server Technology PRO2 STV-6501A 30-Outlet PDU
IEC 60320 C20 - 24 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - Rack-mountable
About This Product
Overview
The Server Technology® PRO2 Switched POPS PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® and POPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched POPS "Master" PDU can be connected to as many as three (with optional module) PRO2 Switched POPS "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration
- PDU improves efficiency, uptime and growth of data centers
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- IEC 60320 C20 plug/connector type for efficient connectivity and feasible power output
- 230 V AC input voltage for optimal performance with maximum usability
- 208 V AC output voltage for better reliance and maximum usability
Quick Specifications
- Product Series
- PRO2
- Product Model
- STV-6501A
- Product Type
- PDU
- Plug/Connector Type
- IEC 60320 C20
- Receptacle Type
- IEC 60320 C13 IEC 60320 C19
- Receptacle Detail
- 24 x IEC 60320 C13 6 x IEC 60320 C19
- Protection Type
- Circuit Protection
- Input Voltage
- 230 V AC
