Sierra Wireless AirLink Antenna
Manufacturer: Sierra Wireless
Mfr. Part: 6001354
617 MHz to 6000 MHz - 26 dB - Cellular Network, Wireless Router, Wireless Data Network - Black - Bolt Mount
About This Product
Overview

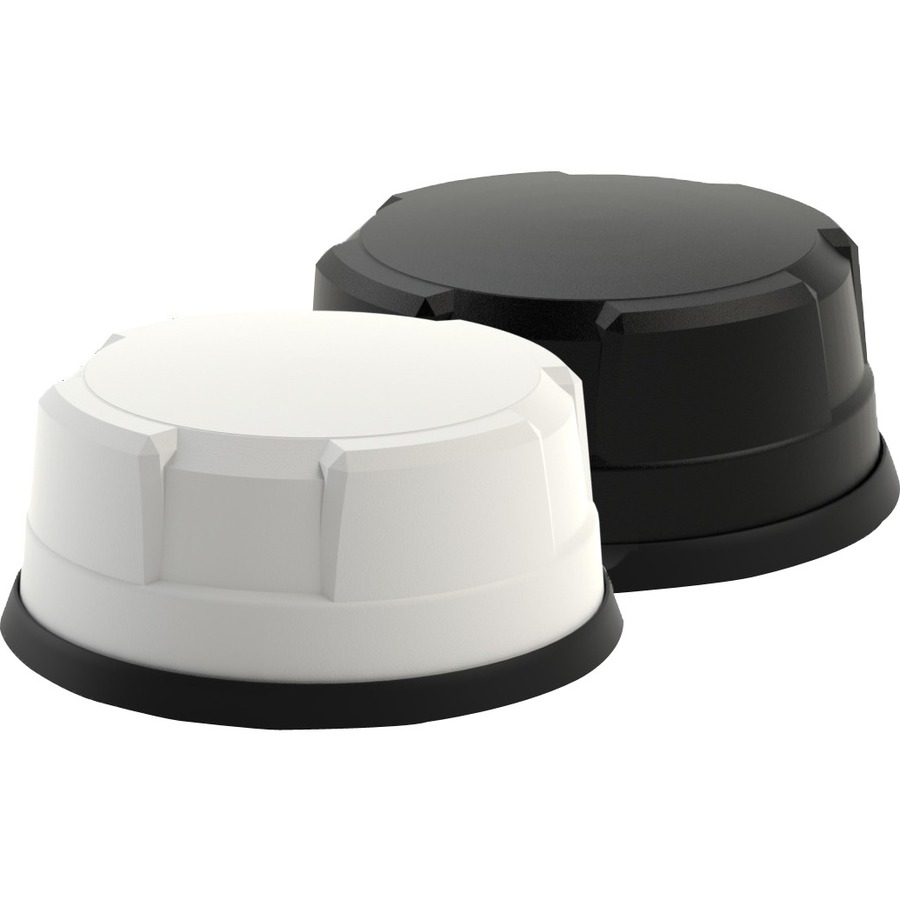

Dome
The Dome Antennas are high performance, rugged, ground plane independent MiMo antennas. They have low profile design that contains up to ten isolated high performance antenna elements in a single housing for optimal coverage-four ultra-wideband elements spanning 617-6000MHz support MiMo/diversity at LTE/5G frequencies; a high performance GNSS antenna with an integrated 26dB gain LNA, and up to five dualband 2.4/5GHz Wi-Fi elements that provide reliable MiMo Wi-Fi connectivity.
The Dome antennas are ideal for heavy-duty public safety, transit and industrial installations, with a simple single bolt mounting.
The Dome Antennas are high performance, rugged, ground plane independent MiMo antennas. They have low profile design that contains up to ten isolated high performance antenna elements in a single housing for optimal coverage-four ultra-wideband elements spanning 617-6000MHz support MiMo/diversity at LTE/5G frequencies; a high performance GNSS antenna with an integrated 26dB gain LNA, and up to five dualband 2.4/5GHz Wi-Fi elements that provide reliable MiMo Wi-Fi connectivity.
The Dome antennas are ideal for heavy-duty public safety, transit and industrial installations, with a simple single bolt mounting.
- Designed to operate at 617 MHz to 6000 MHz operating frequency range
- Designed for cellular network
- Operates at 26 dB gain
- Antenna can be mounted as bolt mount
Quick Specifications
- Product Line
- AirLink
- Product Type
- Antenna
- Operating Frequency Range
- 617 MHz to 6000 MHz
- Antenna Gain
- 26 dB
- Product Color
- Black
- Form Factor
- Bolt Mount
- Application/Usage
- Cellular Network Wireless Router Wireless Data Network
- Compatibility
- Airlink XR80 Series 5G Router
