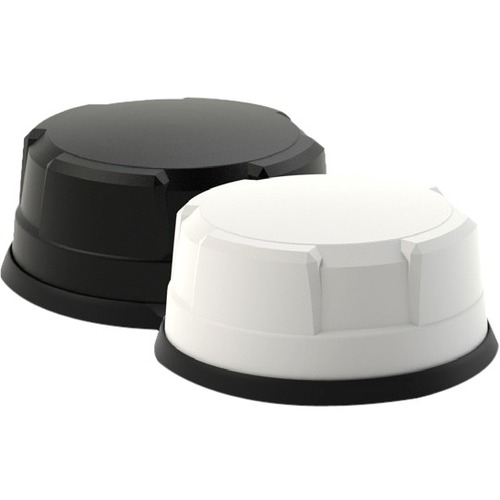

Sierra Wireless AirLink Antenna: 6-in-1 Dome
Manufacturer: Sierra Wireless
Mfr. Part: 6001363
698 MHz to 960 MHz, 1710 MHz to 2700 MHz, 2.4 GHz, 5 GHz, 4.9 GHz to 6 GHz, 1562 MHz to 1612 MHz - 26 dB - GPS, Cellular Network, Wireless Data Network, Wireless Router, Gateway - White - Bolt Mount - SMA, RP-SMA Connector
About This Product
Overview
AirLink® Antenna: 6-in-1 Dome
The 6-in-1 Dome has been tested and certified to operate with AirLink LTE routers and gateways.
It has a low profile design that contains six isolated high performance antenna elements in a single housing for optimal coverage; two ultra-wideband elements spanning 698-2700MHz support MiMo/diversity at LTE frequencies; a high performance GNSS antenna with an integrated 26dB gain LNA, and three dualband 2.4/5GHz Wi-Fi elements that provide 3x3 MiMo Wi-Fi.
The antenna is ground plane independent, and maintains a high level of performance even when mounted on a non-metallic surface.
The 6-in-1 Dome has been tested and certified to operate with AirLink LTE routers and gateways.
It has a low profile design that contains six isolated high performance antenna elements in a single housing for optimal coverage; two ultra-wideband elements spanning 698-2700MHz support MiMo/diversity at LTE frequencies; a high performance GNSS antenna with an integrated 26dB gain LNA, and three dualband 2.4/5GHz Wi-Fi elements that provide 3x3 MiMo Wi-Fi.
The antenna is ground plane independent, and maintains a high level of performance even when mounted on a non-metallic surface.
- Designed to operate at 698 MHz to 960 MHz operating frequency range
- Provides connectivity to your gps, making it perfect for usage
- Provides gain of up to 26 dB
- Antenna can be mounted as bolt mount
Quick Specifications
- Product Line
- AirLink
- Product Type
- Antenna
- Operating Frequency Range
- 698 MHz to 960 MHz 1710 MHz to 2700 MHz 2.4 GHz 5 GHz 4.9 GHz to 6 GHz 1562 MHz to 1612 MHz
- Antenna Gain
- 26 dB
- Connector Type
- SMA RP-SMA
- Product Color
- White
- Height
- 2.44"
- Diameter
- 6.93"
