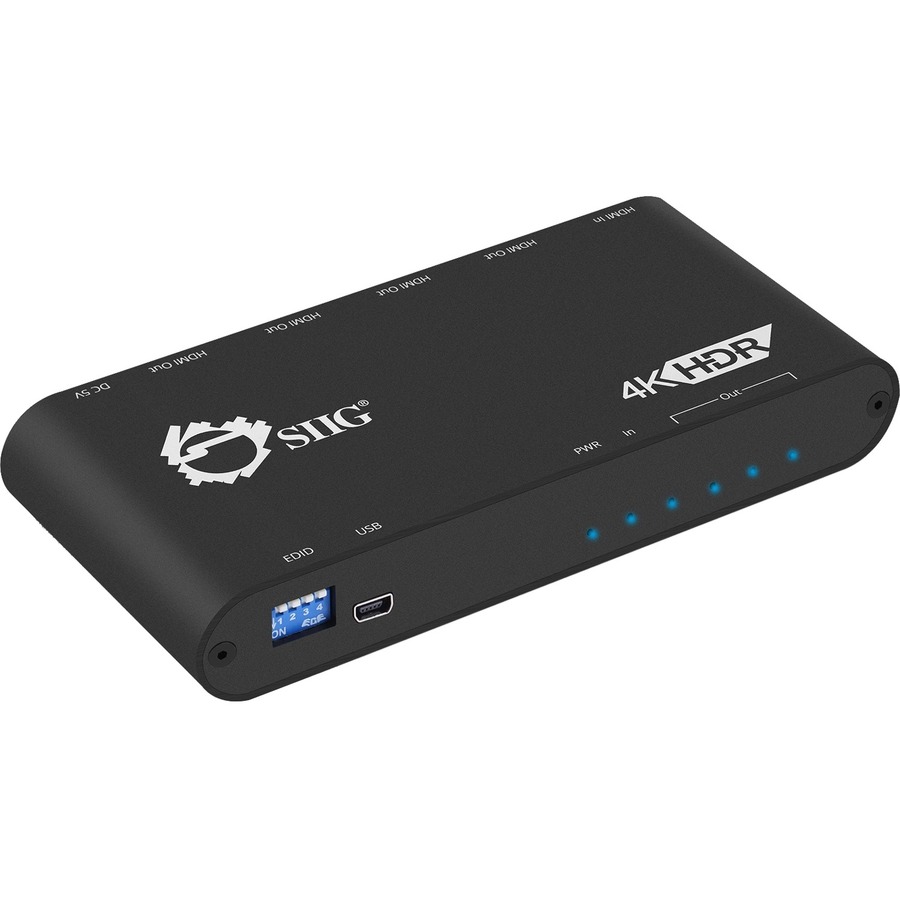

SIIG 1x4 HDMI 2.0 Splitter / Distribution Amplifier with Auto Video Scaling - 4K 60Hz HDR
Manufacturer: SIIG, Inc
Mfr. Part: CE-H22Y11-S1
4K 60Hz HDR - 4 port HDMI distribution amplifier - 18Gbps video bandwidth - HDCP 2.2- 4K60Hz HDR - Auto video scaling - 7.1CH Audio - ESD protection- Firmware update via Mini USB - Downscaling from 4K 60Hz to 1080p 60Hz capability - Embedded EDID and EDID learning - EDID management DIP switch - 3 years warranty - TAA compliant
About This Product
Overview
Distributes HDMI video/audio signals from one HDMI source to four HDMI displays while maintaining signal quality
- Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality
- Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
- Supports up to 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color
- Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
- Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.
- EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
- Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
- Easy to cascade multiple splitters for more displays. Supports up to 10 layers
- Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality
- Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
- Supports up to 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color
- Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
- Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.
- EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
- Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
- Easy to cascade multiple splitters for more displays. Supports up to 10 layers
Quick Specifications
- Product Type
- Audio/Video Distribution Amplifier
- Minimum Frequency
- 25 MHz
- Maximum Frequency
- 600 MHz
- Maximum Video Resolution
- 3840 × 2160
- HDMI In
- Yes
- HDMI Out
- Yes
- Number of HDMI Inputs
- 1
- Number of HDMI Outputs
- 4
