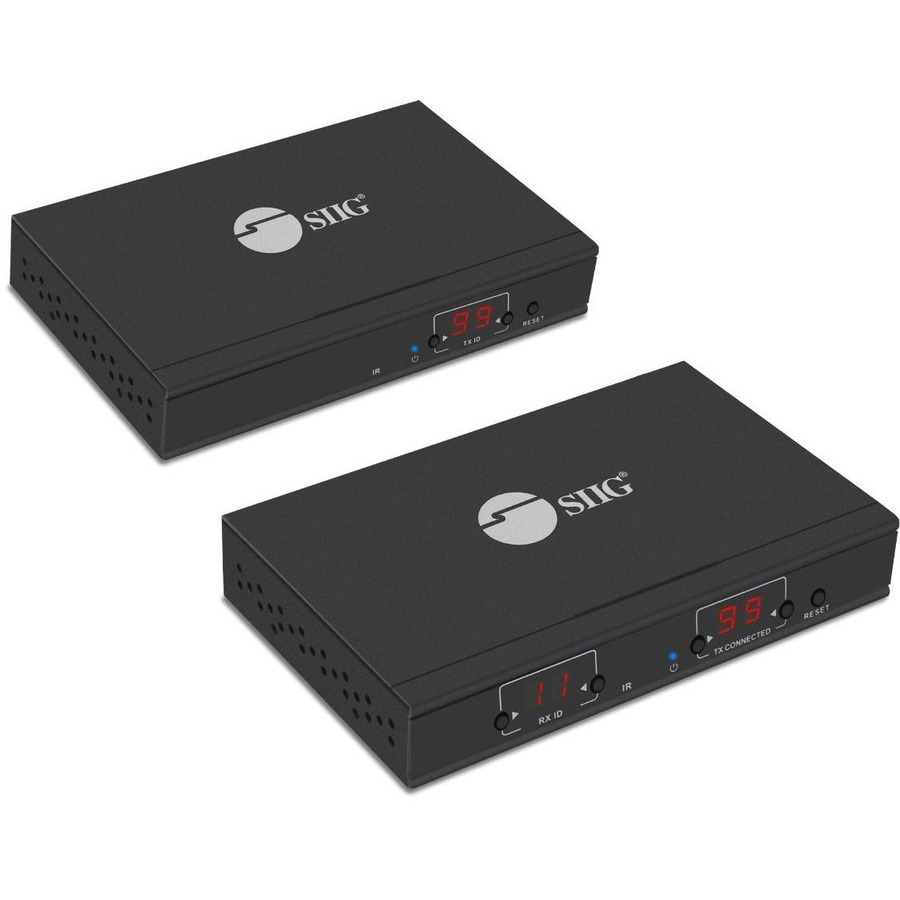

SIIG Full HD HDMI Over IP Extender Kit
120M - Over IP Networks - Many to Many - Supports HDBit-T
About This Product
Overview
Features
- Extends HDMI signals with stereo audio to a remote display over UTP CAT5e/6 cabling up to 120 meters
-
Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S2) and receiver units (part# CE-H23C11-S2) sold separately
-
Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images
-
Supports IR pass back function to control the source device from RX location
-
Supports computer control software to select and switch between source devices (Matrix only)
-
Supports HDbit-T protocol with H.264 compression over IP
-
HDMI output on the transmitter allows you to monitor the HDMI signal at the source location
-
RS-232 pass-through connection to control RS-232 enabled devices at either direction
- Video Extender Transmitter/Receiver provides efficient and feasible audio/video transmission, decoding, and extending
- 480p supported video mode for pleasurable viewing and dependable usage
- 1920 x 1080 maximum video resolution for a spectacular, sharp display with added reliability
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- The CE-H23A11-S2 video extender transmitter/receiver provides plenty of freedom with wired connectivity
- 1 input devices supported for maximum feasibility and usage convenience
- 1 output devices supported for maximum feasibility and usage convenience
- 393.70 ft maximum operating distance for feasible operation and optimal coverage
Quick Specifications
- Product Model
- CE-H23A11-S2
- Product Type
- Video Extender Transmitter/Receiver
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 393.70 ft
- Graphics Modes
- Full HD
- Supported Video Modes
- 480p 720p 1080i 1080p
