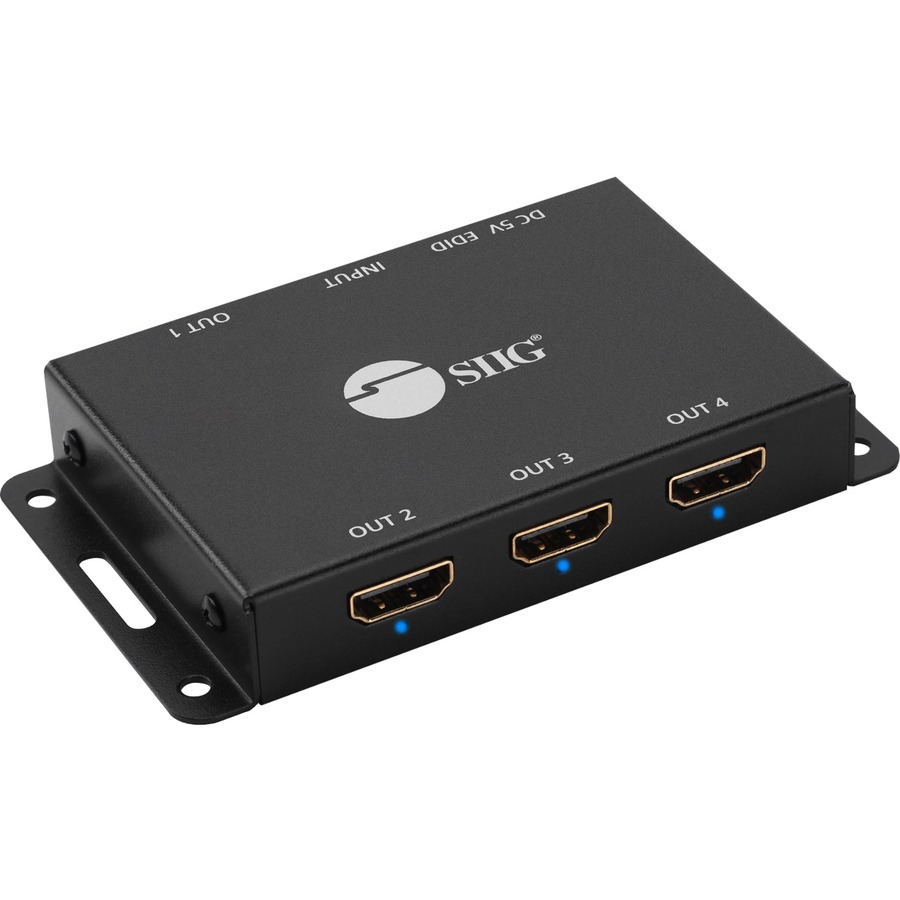

SIIG 4 Port HDMI 2.0 HDR Mini Splitter Amplifier with EDID Management
Manufacturer: SIIG, Inc
Mfr. Part: CE-H23L11-S1
4 Port HDMI Splitter- 4K60Hz- 1x4 HDMI Splitter- HDR- HDCP 2.2- HDMI 4K Splitter with EDID management - 4 Port 4K HDMI Splitter 1 in 4 out Video auto downscaling- 7.1-ch Audio- HDMI Splitter Metal Housing - 3840x2160 60Hz - Power LED Indicator - USB-A to Micro USB Power Cable - Wall Mountable- TAA Compliant - 3 years warranty
About This Product
Overview
Distributes HDMI video/audio signals from one HDMI source to 4 HDMI displays while maintaining signal quality
- Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality
- Compliant with HDMI 2.0 and HDCP 2.2
- Supports 18Gbps bandwidth
- Supports 4K (3840x2160) @60Hz (YUV 4:4:4 8bit), HDR 4K (3840x2160) @60Hz (YUV 4:2:0 10bit), 3D, xvYCC, x.v.Color & Deep Color
- Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
- Resolution downscaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor
- Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.
- EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
- Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
- Split CATV and other signals with this satellite splitter so that it can be used for more than one device
- Up to 3840 × 2160 video resolution.
- Features HDMI port for delivering and transferring high-quality picture and sound simultaneously at a high-speed.
- Unhindered connections with USB devices are ensured by the built-in USB port
Quick Specifications
- Product Type
- Signal Splitter
- Maximum Video Resolution
- 3840 × 2160
- Maximum Video Bandwidth
- 600 MHz
- HDMI In
- Yes
- HDMI Out
- Yes
- USB
- Yes
- Number of HDMI Inputs
- 1
- Number of HDMI Outputs
- 4
