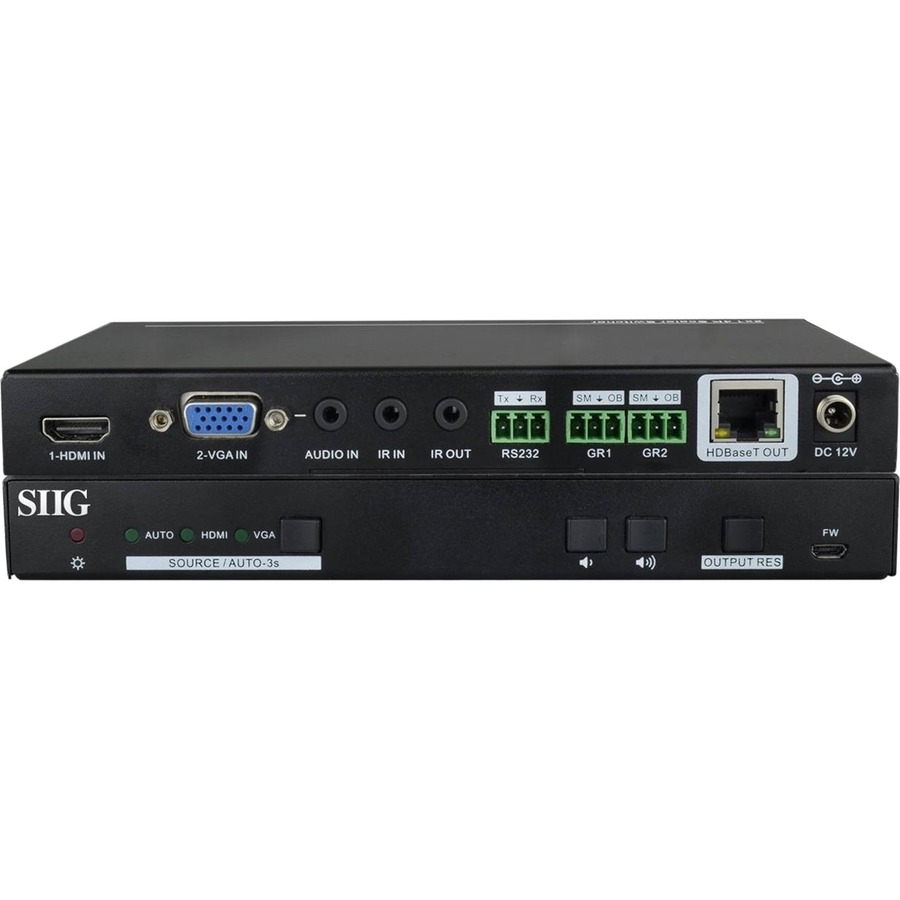

SIIG HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher
Manufacturer: SIIG, Inc
Mfr. Part: CE-H24211-S1
CAT5e/6 - 70 Meters
About This Product
Overview
Allows you to select and switch between any of the 2 source devices (1 HDMI & 1 VGA) to display on a HDMI display through single economical CAT5e/6 cable up to 70 meters (70m-1080p/40m-4K) using advance HDBaseT technology with audio output and IR control
- Scales and switches an HDMI or VGA input to an HDBaseT output
- Features manual or auto device switching options
- Output resolution can be selected between 720p, 4K @60Hz YUV 4:2:0 or 4K @30Hz YUV 4:4:4
- Transmits signals via HDBaseT technology up to 40m (131ft) at 4K or 70m (230ft) at 1080p
- Supports Bi-directional IR extension, RS232 control, advanced EDID management
- Supports bidirectional PoH, the HDBaseT receiver can be powered by this KIT, or this KIT can be powered by receiver via HDBaseT port
- Compliant with HDMI 1.4 and HDCP 2.2 on HDMI output
- Switch between sources by using this audio video switchbox without degradation of video quality and eliminate the need to manually switch cables between sources
- Trouble free connection with display
- Switch between 2 sources to a single display
- 4096 x 2160 resolution for high-quality video delivery
Quick Specifications
- Product Type
- Audio/Video Switchbox
- Connectivity Technology
- Cable
- Number of Input Devices Supported
- 2
- Device Supported
- Display Blu-ray Disc Player DVD Player Gaming Console TV Computer
- Number of Displays Supported
- 1
- Graphics Modes
- 4K
- Maximum Video Resolution
- 4096 x 2160
- HDMI In
- Yes
