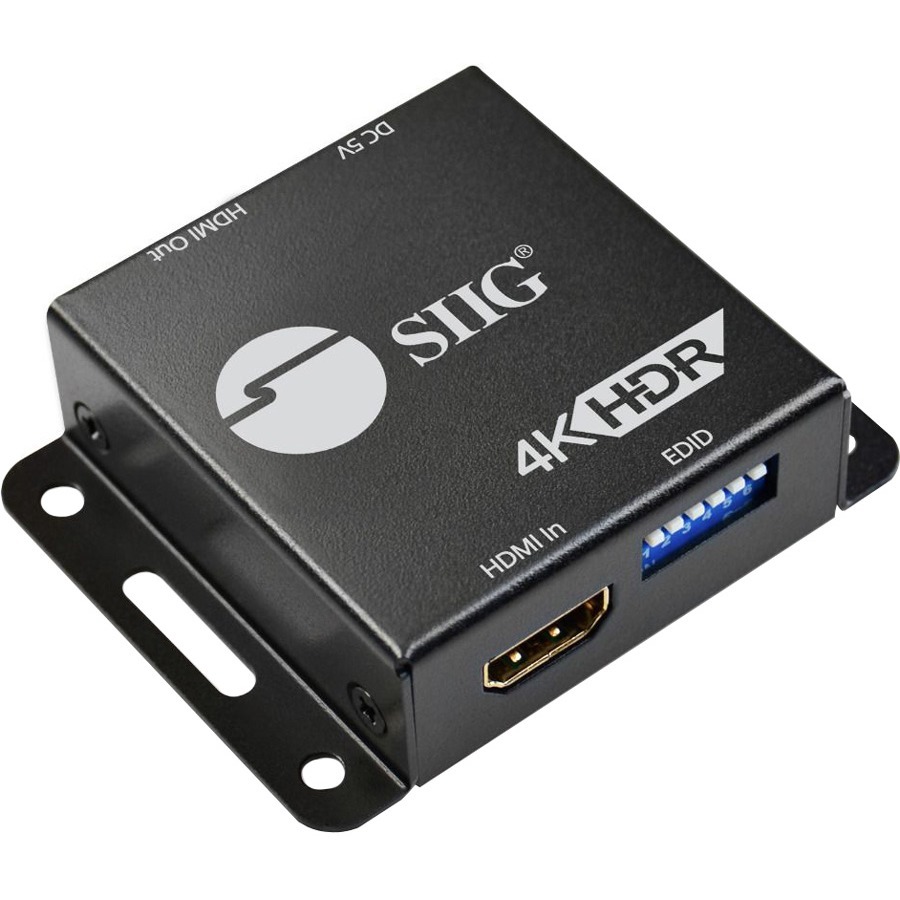

SIIG HDMI 4K60Hz EDID Emulator
Manufacturer: SIIG, Inc
Mfr. Part: CE-H24Z11-S1
HDMI 4K60Hz 18Gbps video Emulation / Amplifies and equalizes the HDMI signal transmission - Compliant with HDCP 2.2 / HDMI 4K60Hz 4:4:4 8-bit / HDMI 4K60Hz 4:2:0 10-bit HDR - CEC bypass - 7.1 ch audio - 17 EDID modes management - Micro USB FW updated - ESD protection - Metal housing - Wall Mountable - 3 years warranty - TAA Compliant
About This Product
Overview
Emulates and learns the EDID of a video display providing constant and reliable EDID data to the HDMI source device to prevent audio/video loss
- Provides reliable EDID data between the source and display to ensure audio and video signal compatibility to provide a smooth stable high quality audio and video experience
- Amplifies and equalizes the HDMI signal transmission for use with longer HDMI cables and allows for multiple layers of cascading
- Supports video resolution up to 4Kx2K 60Hz (YUV 4:4:4 8bit) or HDR 4Kx2K (YUV 4:2:0 10bit)
- Supports 3D, CEC, HDMI 2.0 and HDCP 2.2 protocols
- Supports 17 EDID modes including default EDID and EDID learning from the display
- Built-in Micro USB power connector provides external power and also can be used for firmware updating as needed
- Wall mount metal housing enhances durability and provides excellent heat dissipation for reliable performance and long lifespan
- The video emulator is a great choice for capturing and saving your favorite photos, audio and videos recorded by the capture card
- To fulfill your needs, this video emulation function is a perfect choice
- Mountable to a wall, saves you floor space and yet easy-to-reach
Quick Specifications
- Product Type
- Video Emulator
- Functions
- Video Emulation
- USB
- Yes
- HDMI
- Yes
- Form Factor
- Wall Mountable
- Height
- 0.7"
- Width
- 2.2"
- Depth
- 0.7"
