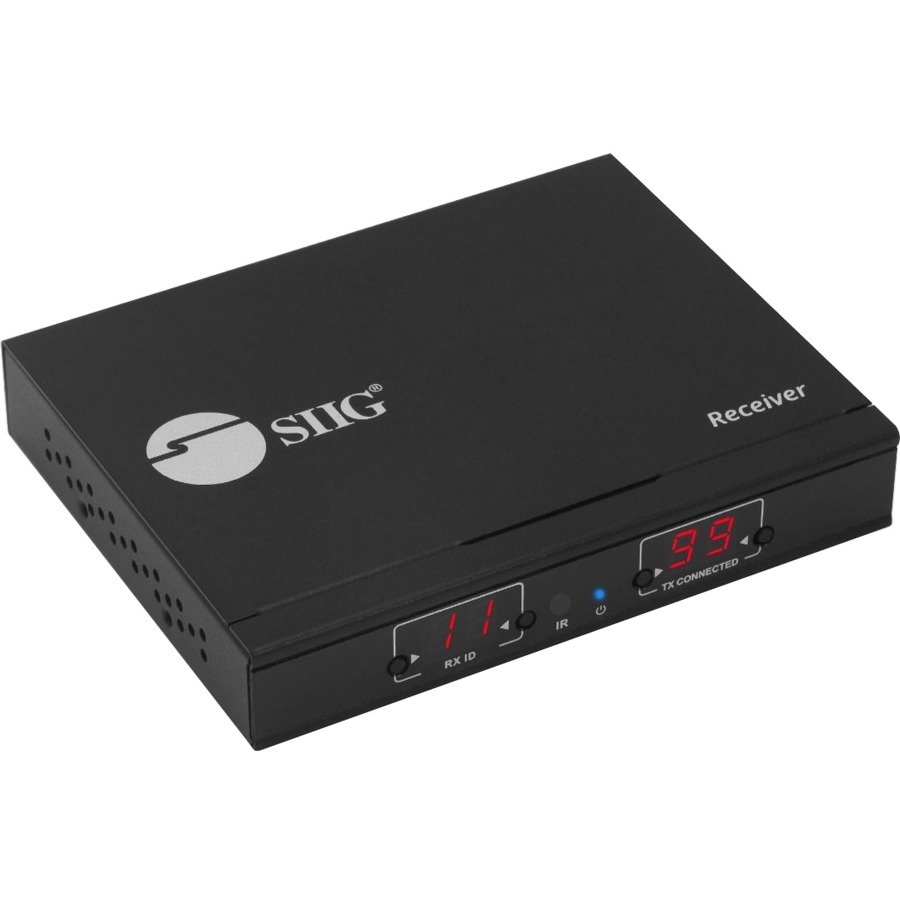

SIIG HDMI 2.0 4K60Hz Over IP Extender / Matrix with IR - Decoder (RX)
Manufacturer: SIIG, Inc
Mfr. Part: CE-H25C11-S1
120M - HDMI Over IP Networks for Cat5e/6 - One to Many/Many to Many - Multi-casting connection - HDMI over HDBitT - Support distance up to 394ft (120M) - Works with IGMP Network switch - Allows up to 256 total units - resolution up to 4K60Hz - HDCP 2.2 - IR pass-through feature - RS-232 Control - LED digital channel buttons or Remote control - Metal housing - 2 years warranty - work for Encoder (TX) (CE-H25B11-S1)
About This Product
Overview
Receives 4K HDMI signals through economical Cat5e/6/7 cabling from transmiter unit up to 120 meters away, use with HDMI 2.0 4K60Hz Over IP Extender/Matrix with IR - Encoder (TX)(part # CE-H25B11-S1) sold separately
- Receives HDMI signals with stereo audio and transmits it to a remote display over Cat5e/6/7 cabling up to 120 meters, requires HDMI 2.0 4K60Hz Over IP Extender/Matrix with IR - Encoder (TX) (part # CE-H25B11-S1) sold separately
- Note: A good quality Cat5e/6/7 cable is essential in delivering quality content. Cat6/6a/7 is recommended over Cat5e
- Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional encoder (TX)units (part # CE-H25B11-S1) and Extender/Matrix Kits (part # CE-H25A11-S1) sold separately
- Note: Dedicated unmanaged IGMP Gigabit Switch is recommended for best performance and reliability
- Delivers up to 4K@60Hz video resolution to deliver stunning and crystal clear images
- IR pass back function to control the source device from RX location
- Computer control software to select and switch between source devices (Matrix only)
- HDbitT protocol with H.264 compression over IP delivers superior performance and reliability
- Video Extender Receiver provides efficient and feasible audio/video transmission, decoding, and extending
- HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- 1 output devices supported for maximum feasibility and usage convenience
- 393.70 ft maximum operating distance for feasible operation and optimal coverage
- 4K graphics mode for stunning, lively video quality
Quick Specifications
- Product Type
- Video Extender Receiver
- Connectivity Technology
- Wired
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 393.70 ft
- Graphics Modes
- 4K
- Network (RJ-45)
- Yes
- HDMI Out
- Yes
- Number of Network (RJ-45) Ports
- 1
