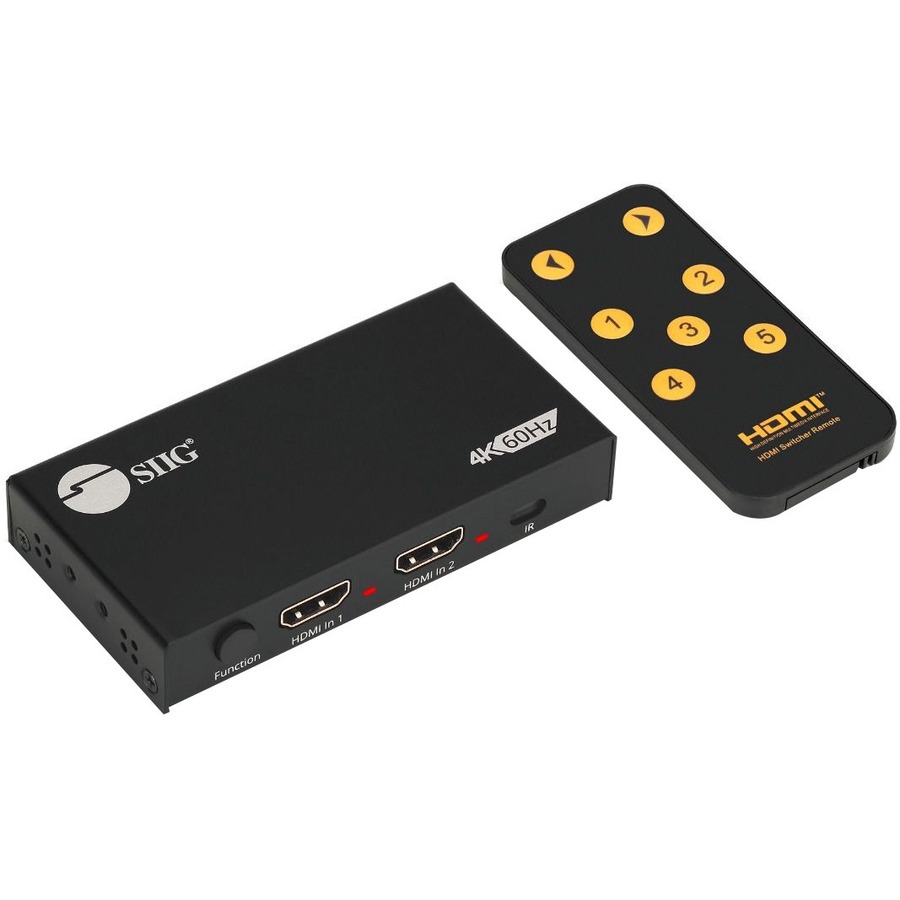

SIIG 2 Port HDMI 2.0 4K HDR Splitter / Switcher with IR Remote
Manufacturer: SIIG, Inc
Mfr. Part: CE-H26D11-S1
18Gbps video bandwidth - 2 port HDMI input switcher or 1x2 HDMI splitter - Up to 4K60Hz 4:4:4 8-bit or 4K60Hz 4:2:0 10 bit HDR - EDID management - Downscaling 4K60Hz to 1080p 60Hz - HDCP 2.2/1.4 - 3.5mm 2ch audio or HDMI 7.1 ch audio - LED indicators - Micro USB FW update and power in - included power supply and Micro USB cable - Function button switch - Metal housing - IR Remote Control - Mountable design - 2 years warranty
About This Product
Overview
Share two 4K HDMI displays (mirror mode) between two 4K HDMI sources with IR remote control switching and EDID management
- Distributes HDMI video and audio from two HDMI sources to up to 2 HDMI displays simultaneously while maintaining signal quality
- Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
- Supports resolutions up to 4Kx2K@60Hz (YUV 4:4:4 8-bit), 3D, HDR, 36-bit Deep Color
- Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Supports stereo audio extraction to 3.5mm audio output jack for 2ch stereo source devices only
- Auto video scaling feature, via HDCP detection of your connected display, detects and configures the video resolution automatically according to the capabilities of the connected monitors
- High quality materials and metal housing extends the stability and durability, allowing for long hours of operation
- Built-in EDID management and firmware update mechanism further expands compatibility
- EDID modes are controlled by the included remote control, push button control cycles between Auto EDID, Copy EDID, and Mixed EDID modes
- Individual LED indicators for power and EDID mode allow for easy and quick operating status
Compatibility Notes:
- 4K@30Hz monitors will display in 1080p @60Hz resolution
- Does not support 4K/60Hz YUV 422 down scaling
- The 2 HDMI outputs mirror each other, extended displays are not supported
- Split CATV and other signals with this satellite splitter so that it can be used for more than one device
- Features HDMI input to get connected with the top of the line HDMI supported devices
- Features HDMI port for delivering and transferring high-quality picture and sound simultaneously at a high-speed.
- Establishes a rapid connection with USB devices
Quick Specifications
- Product Type
- Signal Splitter
- HDMI In
- Yes
- HDMI Out
- Yes
- USB
- Yes
- Number of HDMI Inputs
- 2
- Number of HDMI Outputs
- 2
- Input Voltage
- 120 V AC 230 V AC
- Product Material
- Metal
