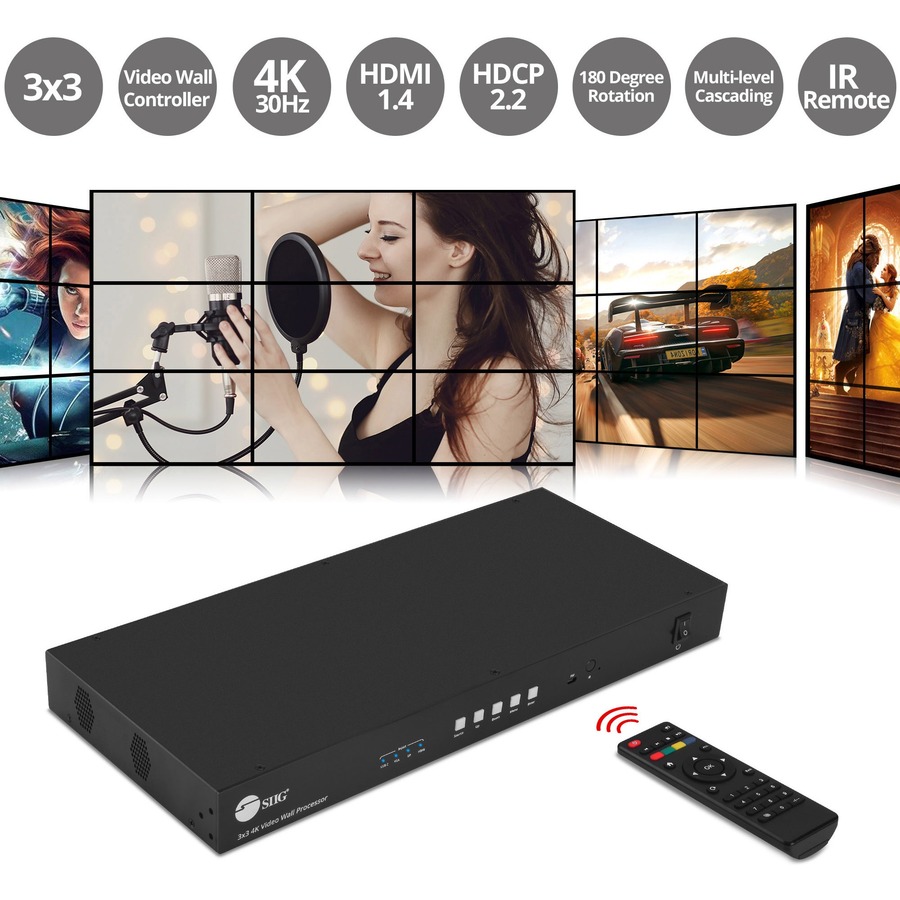

SIIG 3x3 4K Video Wall Processor with USB-C / DP / VGA / HDMI Input with EDID Management
Manufacturer: SIIG, Inc
Mfr. Part: CE-H26F11-S1
Multi-level Cascading - Supports 180° HDMI image rotation Up to 4K30Hz / Multi Inputs (USB-C/DP/VGA/HDMI) & 9 HDMI output / HDMI loopout - 180º Rotate - Edge Correction - 1U rack mount design - 3.5mm audio / S/PDIF Audio Extractor - Remote control / Panel button / TCP/IP / RS-232 control - Up to 25 Display Modes - Multi-level Cascading up to 10x10 - Metal housing with mountable - 2 years warranty
About This Product
Overview
3x3 4K Video Wall Processor with USB-C / DP / VGA / HDMI Input
- Allows you to select and switch between 4 source devices (1 HDMI, 1 DisplayPort, 1 USB-C, and 1 VGA) to display on 9 HDMI displays + 1 local HDMI out
- Create a 3x3 Video Wall using any source device to 9 displays
- Supports multi-level cascading to create 3x4, 4x5, 5x6, and 10x10 (max) video walls
- Compliant with HDCP 2.2/1.4 specification
- Supports 180° HDMI image rotation
- Supports EDID management: Two default EDID: 4K30Hz & 1080p
- Supports resolution up to 4K@30Hz for USB-C, DisplayPort and HDMI inputs, 1080p for the VGA input
- OSD allows more than 10 splicing modes, video wall setup by single click
- Supports monitor edge adjustment
- Supports source device switching via front panel button, remote control, RS232 command, and TCP/IP control
- USB port allows firmware upgrades when needed
- Supports SPDIF and analog audio extraction to connect external speakers or AVRs
- Mounting brackets included for various installation options
- Allows you to select and switch between 4 source devices (1 HDMI, 1 DisplayPort, 1 USB-C, and 1 VGA) to display on 9 HDMI displays + 1 local HDMI out
- Create a 3x3 Video Wall using any source device to 9 displays
- Supports multi-level cascading to create 3x4, 4x5, 5x6, and 10x10 (max) video walls
- Compliant with HDCP 2.2/1.4 specification
- Supports 180° HDMI image rotation
- Supports EDID management: Two default EDID: 4K30Hz & 1080p
- Supports resolution up to 4K@30Hz for USB-C, DisplayPort and HDMI inputs, 1080p for the VGA input
- OSD allows more than 10 splicing modes, video wall setup by single click
- Supports monitor edge adjustment
- Supports source device switching via front panel button, remote control, RS232 command, and TCP/IP control
- USB port allows firmware upgrades when needed
- Supports SPDIF and analog audio extraction to connect external speakers or AVRs
- Mounting brackets included for various installation options
Quick Specifications
- Product Model
- CE-H26F11-S1
- Product Type
- Video Wall Controller
- Video Wall Compatible
- Yes
- Ethernet
- Yes
- USB
- Yes
- DVI
- Yes
- HDMI
- Yes
- Serial
- Yes
