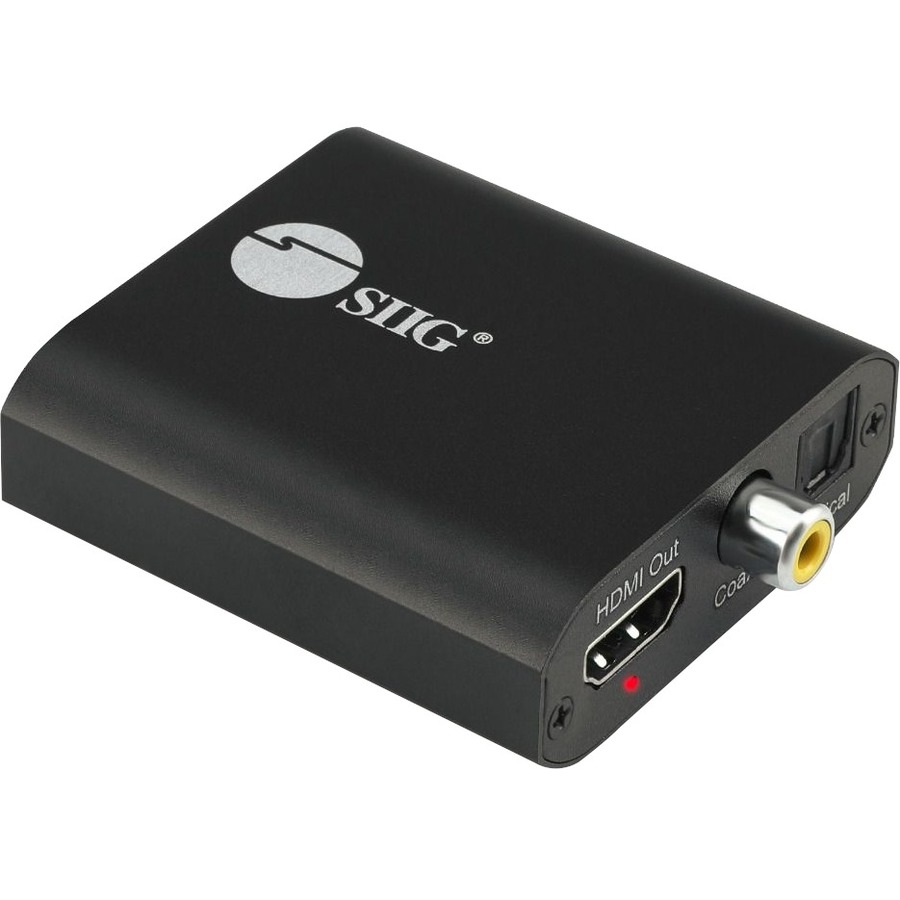

SIIG 4K HDMI with Audio Extractor Converter - Analog Stereo/Toslink Optical/Coaxial S/PDIF

Extracts 4K HDMI audio and splits it to analog stereo, Toslink optical digital, and Coaxial S/PDIF outputs

Features

• Extracts and converts HDMI digital audio signal to 2-channel analog stereo, 5.1 channel Toslink optical, or
  coaxial S/PDIF outputs
• Supports video resoIution up to 4K@30Hz YUV 4:4:4, 4K@60Hz YUV 4:2:0 8-bit or 1080p@60Hz YUV 4:4:4 16-bit
• Supports 340MHz/10.2Gbps per channel bandwidth
• Supports up to 16-bit per channel (48-bit all channel) deep color
• EDID management DIP switches allows the best performance between the connected devices
• Provides the best compatibility via four EDID settings: Copy EDID of the HDMI output, 1080p 3D 2 CH (requires all displays connected to the splitter outputs must support 3D), 1080p 5.1 CH for Optical or Coaxial audio output and 4K 2CH for L/R stereo or Coaxial and Optical output
• Supports uncompressed formats like LPCM and compressed audio such as DTS Digital, Dolby Digital
• Supports HDCP 1.4, HDMI 1.4 specification and Plug and Play installation
