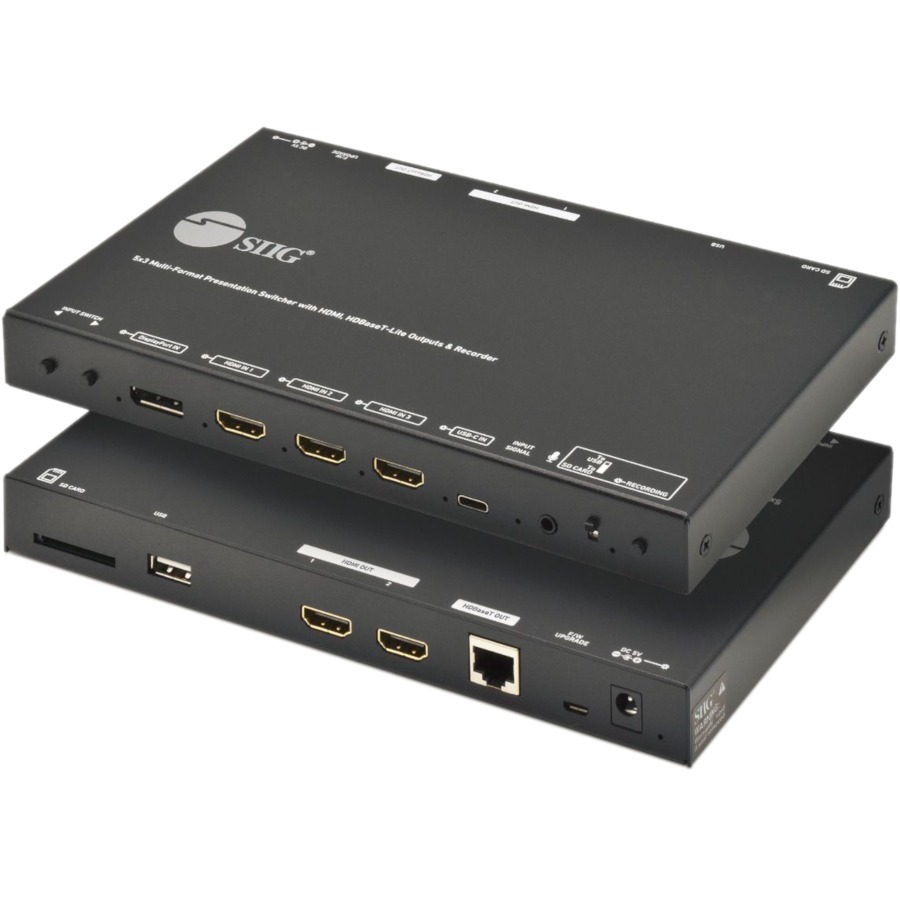

SIIG 5x3 Multi-Format 4K 60Hz Presentation Switcher & Recorder 230ft - TAA Compliant
Manufacturer: SIIG, Inc
Mfr. Part: CE-H26S11-S1
Multi-in-one presentation switcher with video/audio recorder functions in one compact device - Five inputs (DisplayPort / 3x HDMI /USB-C) - Two HDMI and one HDBaseT outputs - Allows recording video/audio to USB flash drive or SD card and select recording storage device via slide switch and record button make this 5x3 Multi-Format Presentation Switcher & Recorder user-friendly to operate - ESD Protection
About This Product
Overview
A multi-in-one presentation switcher with video/audio recorder functions in one compact device, five inputs (1 DisplayPort, 3 HDMI, 1 USB-C), two HDMI and one HDBaseT outputs, allows recording video and audio to USB flash drive or SD card
Features
- Multiple video inputs: 3 HDMI 2.0a, 1 DP1.2, 1 USB-C (DP Alt)
- Note: The adapter's USB-C input does not support smart phones
- Video Bandwidth up to 18Gbps
- Compliant with HDCP 2.2 and 1.4
- Input resolution up to 4Kx2K@60Hz YUV 4:4:4 8bit
- Output resolution up to 4Kx2K@60Hz YUV 4:4:4 8bit through HDMI and 4Kx2K@60Hz YUV 4:2:0 or 4K@30Hz YUV 4:4:4 8-bit via HDBaseT extender (not included)
- Support HDBaseT transmission distance up to 230ft (70m) from the HDMI source at Full HD 1080p 36-bit and 133ft (40m) at 4K@60Hz YUV 4:2:0
- Note: Requires HDBaseT Extender, sold separately
- Supports video and audio recording to the USB flash drive or SD memory card in the FAT32 and NTFS format.
- Note: DOES NOT record HDCP protected content
- Supports built-in and external microphone
- Supports xvYCC, x.v.Color and Deep color
- Allows switching inputs by front panel push buttons
- Front Panel LED indicators allows for source selection status, input signal status, and recording status
- Multiple video inputs: 3 HDMI 2.0a, 1 DP1.2, 1 USB-C (DP Alt)
- Note: The adapter's USB-C input does not support smart phones
- Video Bandwidth up to 18Gbps
- Compliant with HDCP 2.2 and 1.4
- Input resolution up to 4Kx2K@60Hz YUV 4:4:4 8bit
- Output resolution up to 4Kx2K@60Hz YUV 4:4:4 8bit through HDMI and 4Kx2K@60Hz YUV 4:2:0 or 4K@30Hz YUV 4:4:4 8-bit via HDBaseT extender (not included)
- Support HDBaseT transmission distance up to 230ft (70m) from the HDMI source at Full HD 1080p 36-bit and 133ft (40m) at 4K@60Hz YUV 4:2:0
- Note: Requires HDBaseT Extender, sold separately
- Supports video and audio recording to the USB flash drive or SD memory card in the FAT32 and NTFS format.
- Note: DOES NOT record HDCP protected content
- Supports built-in and external microphone
- Supports xvYCC, x.v.Color and Deep color
- Allows switching inputs by front panel push buttons
- Front Panel LED indicators allows for source selection status, input signal status, and recording status
Quick Specifications
- Product Type
- Audio/Video Switchbox
- Connectivity Technology
- Cable
- Number of Input Devices Supported
- 5
- Device Supported
- Display Projector TV
- Number of Displays Supported
- 3
- Graphics Modes
- 4K
- Maximum Video Resolution
- 3840 x 2160
- HDMI In
- Yes
