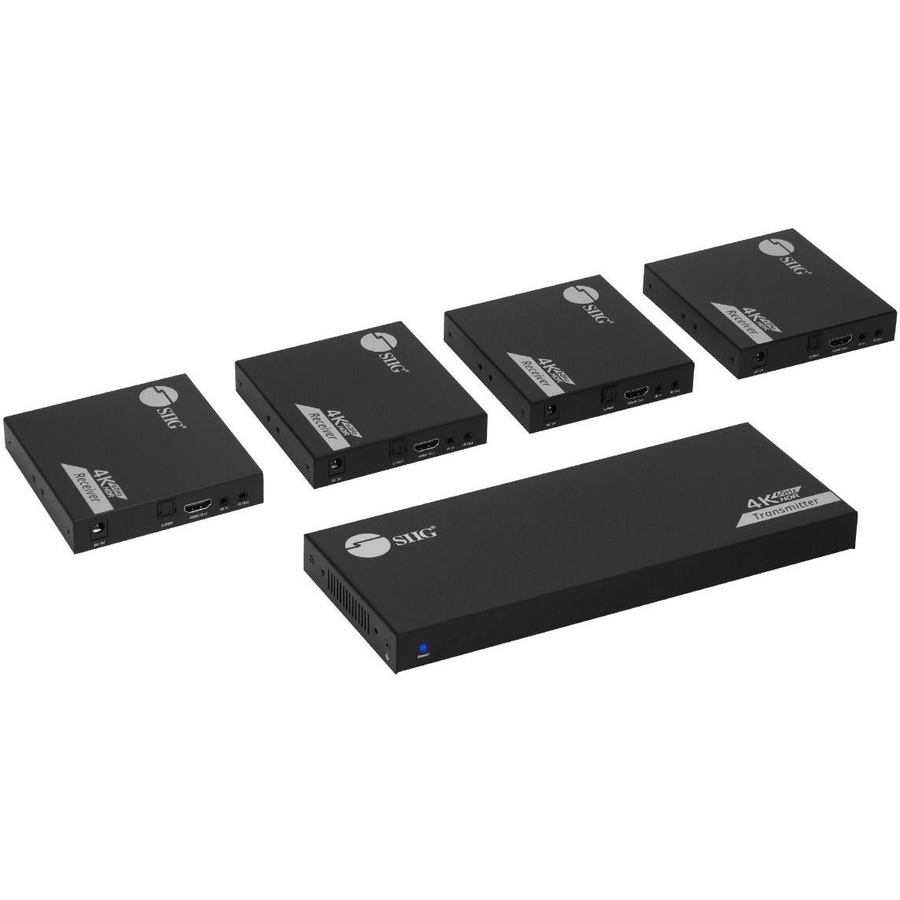

SIIG 1x4 4K 60Hz HDMI Splitter Over Cat6 Extender with Loopout/IR/ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency
HDMI 1 in 1 out & 4 Ext - 1x4 HDMI 4K60Hz Splitter - 4 port HDMI Splitter - HDMI over Cat6/7 Extender - HDR - HDCP 2.2 - 7.1ch audio- HDMI Loopout - Bi-directional IR Extension - S/PDIF audio extraction or ARC audio - DIP Switch - RE-232 Control - EDID Management - Wall mountable - Power adapter / IR cable included - ESD protection - Metal housing - 2 years warranty
About This Product
Overview
Multiple Connectivity Ports
Comes with one HDMI video input port, one HDMI video loop-out port, four HDMI video output ports, eight RJ45 network ports, five 3.5mm IR emitter ports, five 3.5mm IR receiver ports, four S/PDIF ports, one RS-232 terminal block, one DIP switch, five reset buttons, four audio slide switches, one DC power jack (12V/2A) for TX, four DC power jacks (5V/2A) for RXs
Applications
- Meeting room
- Lecture hall
- Educational facilities
- Multimedia education
- Home theater
- Restaurant
- Shopping center
- Library
- Show room
- 4K HDMI Extension - Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over economical Cat6/7 cabling to up to 4 displays
- Advanced Transmission Technology - Unique ultra-high-definition video digital transmission and connection extender technology, can extend and transmit 4K@60Hz YUV 4:4:4 video and audio, with zero latency, HDR
- HDMI Loopout + Extend 4 Displays - Supports one HDMI loop-out for additional local display connections and extender 4 receivers for HDTV or Projector via Cat6/7 cable
- EDID Management - Support EDID management capability to controls the resolution output to the display(s)
- Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal
- IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa
- ARC and Audio Extraction - Through the Toslink connection of the Receiver (RX)
- RS-232 Control - Support RS-232 command control in the Transmitter
- Protection - Lightning Protection, Surge Protection, ESD Protection
- High Quality Wall mount Design - High quality metal housing improve heat dissipation and ensure system stability during long hours of operation
Quick Specifications
- Product Type
- Video Extender Transmitter/Receiver
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 4
- Maximum Operating Distance
- 229.66 ft
- Graphics Modes
- 4K
- Maximum Video Resolution
- 3840 x 2160
- Network (RJ-45)
- Yes
