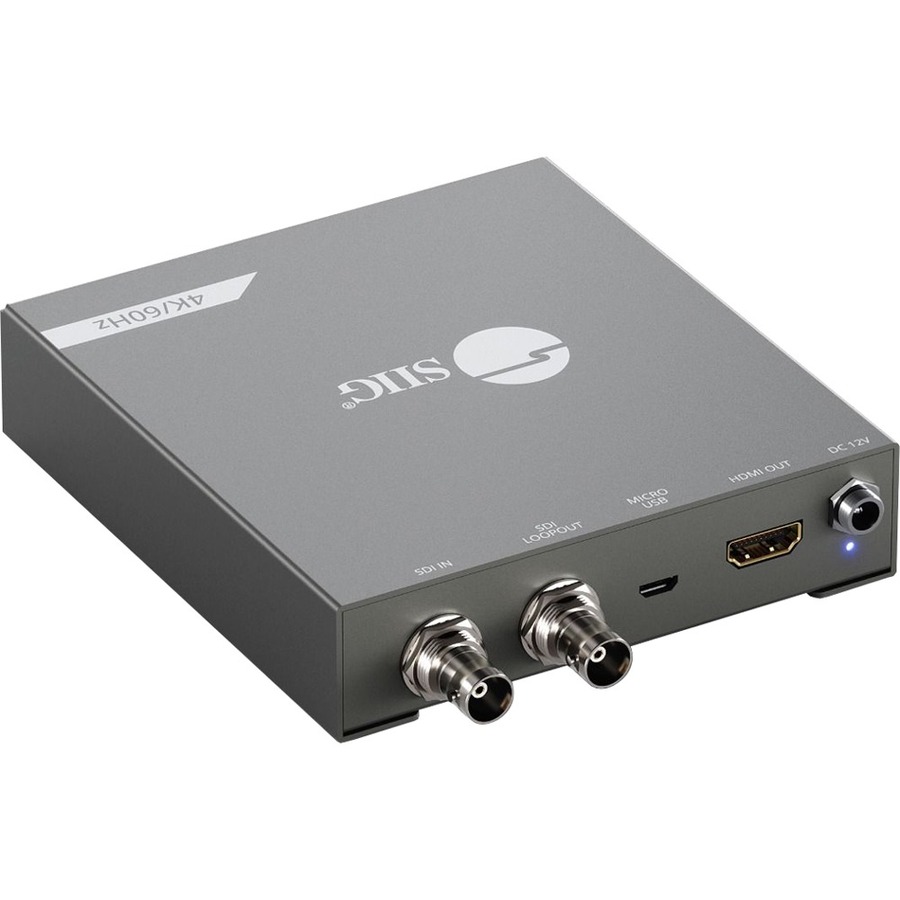

SIIG 12G-SDI to HDMI 2.0 Converter
Manufacturer: SIIG, Inc
Mfr. Part: CE-SD0E11-S1
Functions: Signal Conversion, Audio Extraction - PAL, NTSC - SDI - USB - Wall Mountable - TAA Compliant
About This Product
Overview
Converts a single 12G-SDI source signal into one HDMI and one SDI Loopout simultaneously
- Lossless Conversion - Converts 12G/6G/3G/HD/SD SDI signal to HDMI with resolution up to 4K@60Hz
- SDI Loop-out - An additional 12G/6G/3G/HD/SD-SDI monitor/display connection. Bit rate support: 11.88 Gbps, 11.88/1.001 Gbps, 5.94 Gbps, 5.94/1.001 Gbps, 2.97 Gbps, 2.97/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps
- Audio extraction - Supports audio extraction to stereo audio output, PCM 7.1
- Long cable distance - Supports 12G-SDI up to 264ft, 6G/-SDI up to 363ft, and 3G-SDI up to 726ft
- Future compatibility - USB firmware upgradable for expanding compatibility
- Wall-mountable design - For easy and convenient installation
- High quality components - FCC, CE, RoHS, and TAA compliant
- Lossless Conversion - Converts 12G/6G/3G/HD/SD SDI signal to HDMI with resolution up to 4K@60Hz
- SDI Loop-out - An additional 12G/6G/3G/HD/SD-SDI monitor/display connection. Bit rate support: 11.88 Gbps, 11.88/1.001 Gbps, 5.94 Gbps, 5.94/1.001 Gbps, 2.97 Gbps, 2.97/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps
- Audio extraction - Supports audio extraction to stereo audio output, PCM 7.1
- Long cable distance - Supports 12G-SDI up to 264ft, 6G/-SDI up to 363ft, and 3G-SDI up to 726ft
- Future compatibility - USB firmware upgradable for expanding compatibility
- Wall-mountable design - For easy and convenient installation
- High quality components - FCC, CE, RoHS, and TAA compliant
Quick Specifications
- Product Type
- Signal Converter
- Functions
- Signal Conversion Audio Extraction
- Video Signal Format
- PAL NTSC
- USB
- Yes
- HDMI
- Yes
- SDI
- Yes
- Number of SDI Inputs
- 1
- Number of SDI Outputs
- 1
