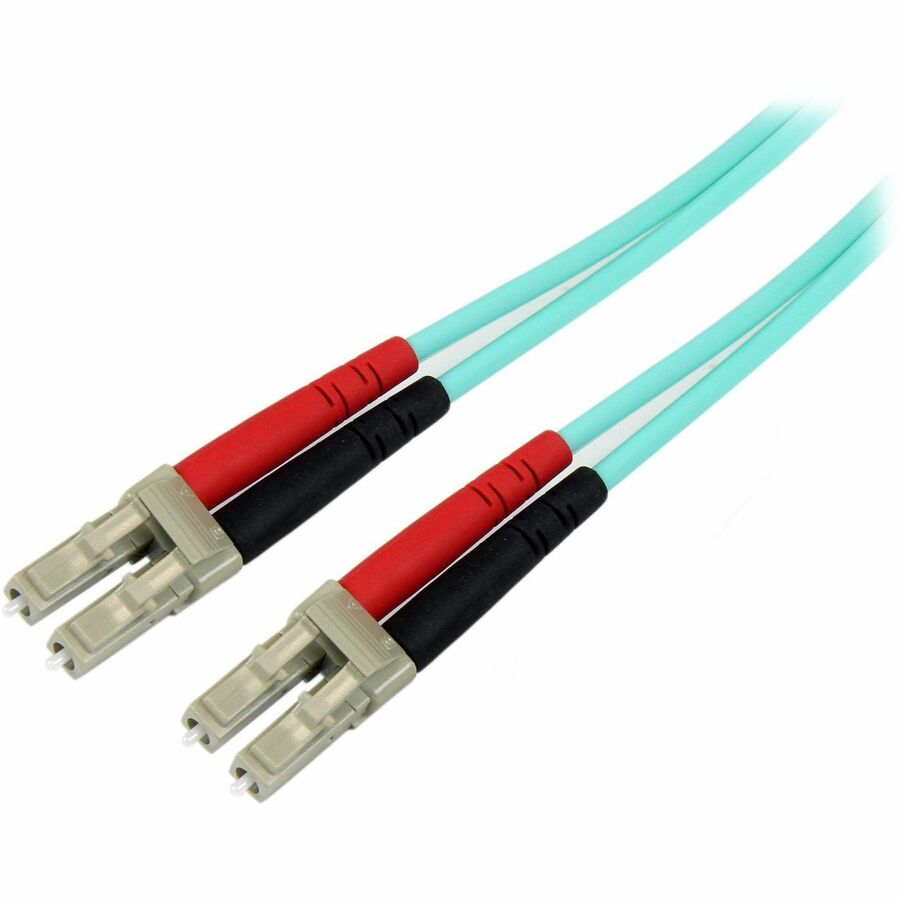

StarTech 8m (26ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125 Zipcord, 100G, LSZH Fiber Jumper Cord
8m (26ft) OM3 Multimode LC/LC-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125um Core w/ Aramid Sheath; Bandwidth: 2000MHz?km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range: -20 to 60°C (-4 to 140°F)
About This Product
Overview
The A50FBLCLC8 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire - an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- WIDE COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers
- SPECS: 8m (26.2ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHzkm at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
Quick Specifications
- Packaged Quantity
- 1
- Product Type
- Network Cable
- Cable Type
- Fiber Optic
- Cable Characteristic
- Patch Cable
- Fiber Optic Mode
- Multi-mode
- Fiber Type
- Duplex
- Fiber Optic Cable Core/Cladding Specification
- 50/125 µm
- Fiber Category
- OM3
