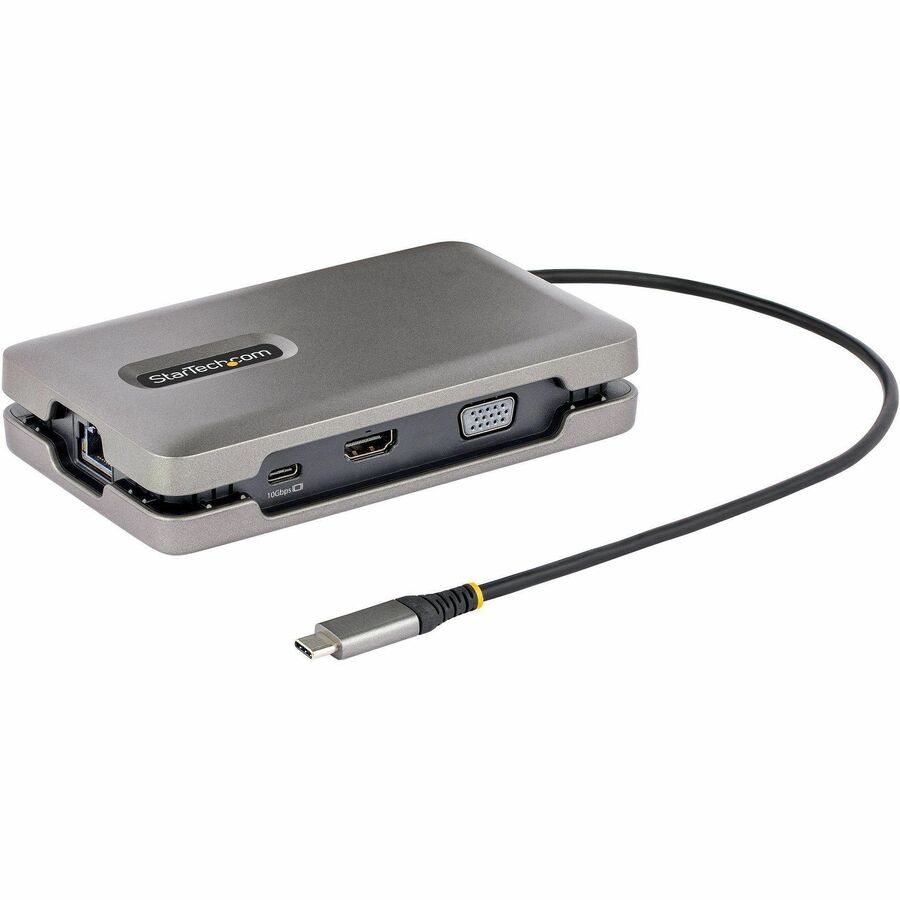

StarTech USB-C Multiport Adapter w/USB-C DP Alt Mode Video/4K HDMI/VGA, USB-C Dual Monitor Docking Station, Mini Dock/MST Hub, TAA
USB-C Multiport Adapter to 4K60Hz HDMI 2.0/USB-C DP 1.4 Alt Mode/1080p VGA (GPU dependent) - 2x USB-A 3.2 Gen 2 10Gbps hub | Gb Ethernet | 100W Power Delivery charging - 10in cable - Compact Type-C Travel Digital AV Mini docking station - Win/Chrome
About This Product
Overview
Versatile, High-Performance Video via MST
The compact USB Type-C Docking Station features three video output options to turn your laptop into a single or multi-monitor workstation.
HDMI Port Provides HDR video with resolutions up to 4K 60Hz.
VGA Port Provides analog video with resolutions up to 1080p 60Hz.
USB-C Port Provides the industry's first downstream full featured video or data (10Gbps) USB-C port that supports DP Alt Mode video or peripheral connection, on a non-Thunderbolt adapter.
The advanced video versatility of this Multiport Adapter, makes it suitable for a wide variety of applications:
- Connect a portable USB-C monitor as an extended display, to obtain a high resolution external monitor during on-the-go travel between an office desk, home office, hot desk, or the boardroom.
- Connect a USB-C peripheral to the downstream 10Gbps USB-C port, while using the HDMI and/or VGA ports to connect external monitor(s) as extended display(s).
- Connect multiple external monitors as extended displays, using any combination of the two video ports, to create a high-productivity workstation. USB-C video adapters (sold separately) can be used to connect HDMI, DVI, VGA, or DisplayPort monitors to the USB-C video port.
This Docking Station utilizes MST to obtain video versatility. Video performance is based upon the number of attached monitors and the host computer's video controller. Consult the manufacturer of the host computer to determine MST video performance. StarTech.com performs rigorous performance benchmarks with all major host computer video controllers. The video performance results of our testing are listed below:
HDMI Port - Single Monitor USB-C DP Alt Mode Port - Single Monitor VGA Port - Single Monitor Maximum Resolution Dual Display (MST)DisplayPort 1.2 Alt Mode Intel Ice Lake 11th Gen and Previous Generation Processors
4K 30Hz 4K 30Hz 1080p 1080p + 1080pDisplayPort 1.4 Alt Mode Intel Tiger Lake, Alder Lake, and Later Generation Processors
4K 30Hz 4K 30Hz 1080p 4K 30Hz + 1080pDisplayPort 1.4 Alt Mode Discrete GPU
More from the Manufacturer
- DUAL MONITOR MULTIPORT ADAPTER: Multi monitor 4K UHD mini dock with USB-C DP Alt mode video output, HDMI 2.0b, or VGA, 2 x USB-A hub, 100W USB-C PD Pass-Through (80W laptop charging), Gigabit Ethernet; USB-C video port also supports USB 10Gbps data
- USB-C VIDEO OUTPUT: USB-C hub with downstream USB-C port (video + 10Gbps data) supports USB-C or desktop monitors; NOTE: Host system must support USB-C Power Delivery and DP alt mode. For a multi-monitor configuration, the computer must support MST
- VIDEO PERFORMANCE: Dual Monitor support up to 1 x 4K 30Hz & 1 x 1440p 60Hz through USB-C & HDMI with Intel 11th Gen DP 1.4 Alt Mode or higher Processors & Discreet GPU, Works w/DP 1.2 laptops supporting 2x 1080p; Single display on Apple M1/M2/M3 Pro/Max
- RELIABLE PERFORMANCE: Adapter is designed to bus power the portable USB-C monitor upto 12W; 100W USB-C PD Pass-Through w/20W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs
- OUR ADVANTAGE: Includes IT Pro Connectivity Tools to improve network performance and security - featuring MAC Address passthrough, USB Event Monitoring, Windows Layout, and Wi-Fi Auto Switch; Works w/ USB-C, Thunderbolt 3/4, Windows, Linux, ChromeOS
Quick Specifications
- Packaged Quantity
- 1
- Product Type
- Docking Station
- Number of Displays Supported
- 2
- Supported Resolutions
- 3840 x 2160 1920 x 1200 1920 x 1080
- Screen Mode Supported
- 4K
- Device Supported
- Notebook Smartphone Tablet
- Host Interface
- USB 3.2 (Gen 2) Type C
- Number of USB 3.2 Gen 2 Type-A Ports
- 2
