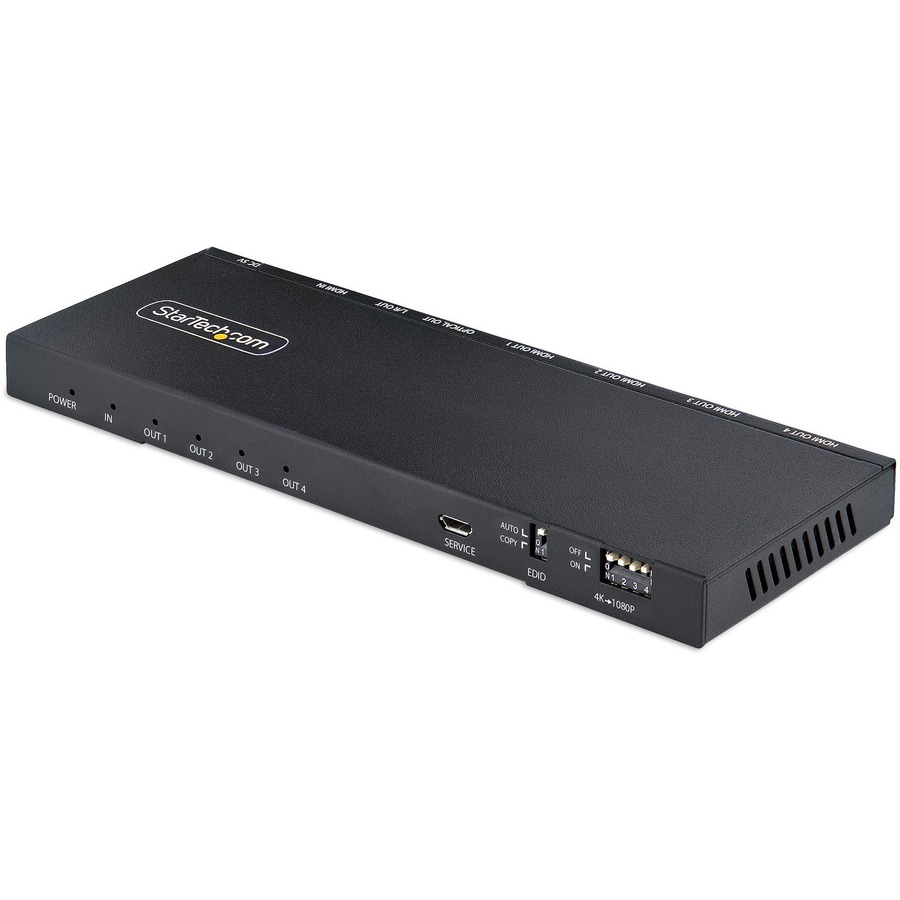

StarTech 4-Port HDMI Splitter, 4K 60Hz HDMI 2.0, 1 In 4 Out HDMI Splitter, 4K HDMI Splitter w/Built-in Scaler, 1x4 HDMI Display/Output
The HDMI 2.0 splitter displays the same image on 4 screens; 4K 60Hz 4:4:4; HDR; 7.1ch Audio; 8kV Air/4kV Contact ESD Protection; Built-in scaler; Simultaneous HDMI/3.5mm/Optical output; No drivers; Metal enclosure; Supports widescreen resolutions
About This Product
Overview
This 4-port HDMI splitter with built-in scaler connects an HDMI video source to four HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), and 7.1 channel audio.
4K 60Hz Resolution
This 4-way HDMI splitter supports up to 4K 60Hz resolution, at 4:4:4 chroma subsampling. The built-in scaler enables enables the concurrent output of 2 resolutions, ideal for environments where there is a variety of displays, monitors, and projectors.
Flexible Audio
This 4K HDMI Splitter features HDMI, 3.5mm, and Optical audio outputs, enabling connections to a variety of speakers and/or amplifiers. Simultaneous audio output is supported across all the audio ports.
Robust Installation Options
This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The metal enclosure and 8kV air and 4kV contact Electro-static Discharge (ESD) protection is suitable for installation in a variety of environments.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
More from the Manufacturer
- 4-PORT HDMI SPLITTER: This HDMI Splitter displays the same image, with audio, on 4 screens | 4:4:4 chroma subsampling support | HDMI 2.0b 4K 60Hz | HDR | 18Gbps Bandwidth | 7.1ch HDMI Audio | HDCP 2.2/1.4| 8kV Air and 4kV Contact ESD Protection
- EDID MANAGEMENT SWITCH: The 4 way HDMI Splitter's EDID Auto setting uses a built-in scaler for outputting 2 different display resolutions | EDID Copy clones the EDID settings from output port 1 to another display at the same resolution (720p and up)
- FLEXIBLE AUDIO SUPPORT: The 4K HDMI Splitter has HDMI, 3.5mm, and Optical audio outputs to connect to a variety of speakers or amplifiers | Simultaneous audio output is supported across all ports | Supports Digital to Analog conversion (DAC)
- LONG REACH: Reach up to 16.4ft (5m) with passive HDMI cables | The 1x4 HDMI Splitter supports active HDMI cables and HDMI extenders (sold separately) to reach further distances which makes it ideal for boardrooms, digital signage and more
- EASY SETUP: No drivers or software required for the 1-Input 4-output HDMI 2.0 splitter | The metal enclosure makes it suitable for installation in many environments | Widescreen resolutions supported | DVI compatible with adapters (sold separately)
Quick Specifications
- Packaged Quantity
- 1
- Product Type
- Signal Splitter
- Maximum Video Resolution
- 3840 × 2160
- HDMI In
- Yes
- HDMI Out
- Yes
- USB
- Yes
- Number of HDMI Inputs
- 1
- Number of HDMI Outputs
- 4
