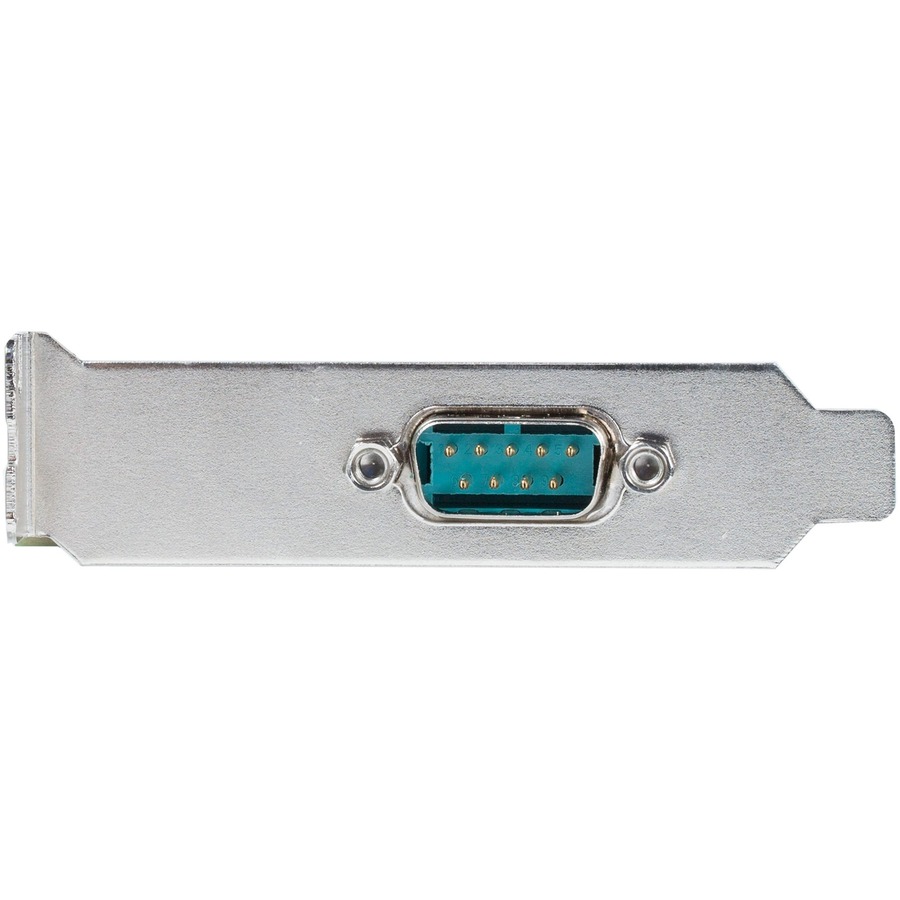

StarTech.com Replaced by PEX1S953LP - 1-Port RS232 DB9 Serial Port - PCI Express Serial Card
Low Profile PCI-Express 16C950 Serial Card - pci express serial card - pci-e serial card - pci express RS232 - rs232 card - pci serial adapter
About This Product
Overview
The PEX1S952LP 1 Port Low Profile Native PCI Express RS232 Serial Adapter Card with 16950 UART adds an RS232 (DB9) Serial Port with data rates up to 460 Kbps to a computer through an available low profile PCIe slot, while relying on a native, single-chip design (Oxford OXPCIe952) that harnesses the capability of true PCI Express - ensuring maximum performance and reliability and reducing the load applied to the CPU by as much as 48% over conventional (bridge chip) serial cards.
The 1 port RS232 serial card features a half-height pci express mounting bracket that's designed specifically for low profile/small form factor computer cases, and includes an optional standard height bracket as well. Compatible with a broad range of operating systems including Windows® and Linux for easy integration into mixed environments.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
More from the Manufacturer
- REPLACED BY PEX1S953LP: Add 1 high-speed serial RS-232 port to any PC with a PCI Express slot
- Native single-Chip, single lane PCI Express
- One high speed RS-232 serial ports with data transfer rate up to 460.8 Kbps
- Ships with low profile/half-height bracket, includes optional standard profile bracket
- Selectable power output on pin 9 for the serial port
- High Performance Single Channel Oxford 950 UART
- 128-byte deep FIFO per transmitter and receiver
- Automated in-band software flow control using programmable Xon/Xoff in both directions
- Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND
- Compliant with PCI Express base specifications revision 1.0a
Quick Specifications
- Packaged Quantity
- 1
- Product Type
- Serial Adapter
- Host Interface
- PCI Express x1
- Platform Supported
- PC Linux
- UART Type
- 16950
- Number of Serial Ports (External)
- 1
- Form Factor
- Plug-in Card
- Card Height
- Low-profile
