Taoglas GPS-GLONASS-GALILEO Hercules Heavy Duty Screw Mount
Manufacturer: Taoglas
Mfr. Part: A.40.A.301111
Range - UHF - 1574 MHz to 1606 MHz - 27 dB - GPS, GLONASS, Vehicle, Outdoor - Black - Screw Mount - SMA Connector

About This Product
Overview

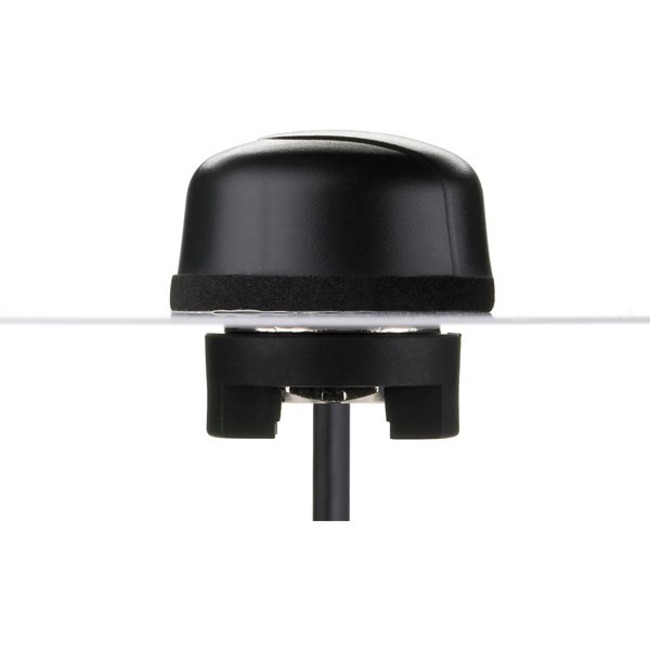

The A.40 Hercules is a high performance thread mount GPS-GLONASS-GALILEO antenna designed for external use on vehicles and outdoor assets. Designed for heavy duty work with one piece C&C machined nickel plated steel base and threads, there are also convenient side slots for running cables laterally. Durable UV resistant PC housing is resistant to vandalism and direct attack. At only 29mm high it complies with the latest EU directives for height restrictions, whilst also enabling covert operation with a diameter of only 49mm. The antenna is completely waterproof with an IP67 rating, plus an additional IP69K rating for waterproof resistance against high pressure water jets used in cleaning.
Cable lengths, types and connectors are fully customizable.
Cable lengths, types and connectors are fully customizable.
- Height 28.5mm Diameter 47.8mm
- Heavy duty screw mount
- IP67 & IP69K Waterproof Rating
- GPS/GLONASS/GALILEO - 3M RG174 SMA(M)
- Customizable
- ROHS Compliant
Quick Specifications
- Product Line
- Hercules
- Packaged Quantity
- 1
- Product Type
- Antenna
- Package Type
- Bulk
- Frequency Band Type
- UHF
- Operating Frequency Range
- 1574 MHz to 1606 MHz
- Antenna Gain
- 27 dB
- Connector Type
- SMA
