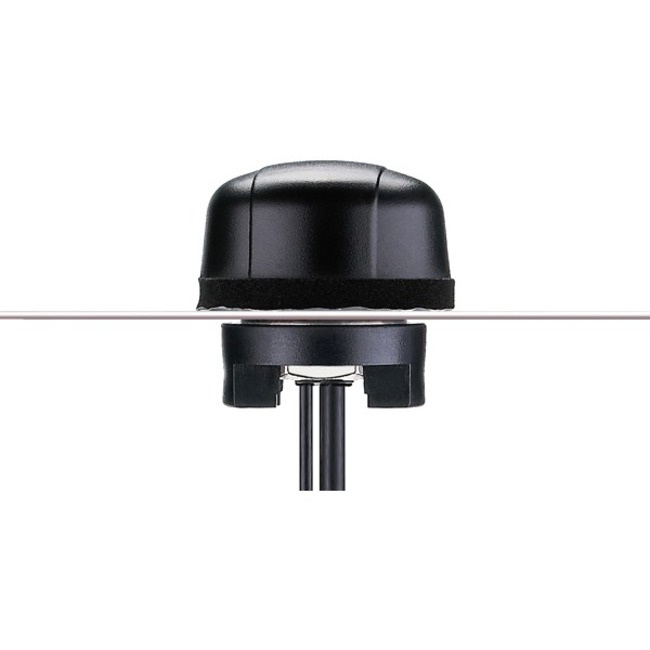

Taoglas Hercules MA104 2in1 GPS/GALILEO & 3G/2G Permanent Mount Antenna
Manufacturer: Taoglas
Mfr. Part: MA104.C.AB.015
824 MHz to 896 MHz, 880 MHz to 960 MHz, 1850 MHz to 1990 MHz, 1710 MHz to 1880 MHz, 1920 MHz to 2170 MHz - 2 dB - Cellular Network, GPS, Outdoor - Black - Screw Mount - SMA Connector
About This Product
Overview
The MA.104.C GPS/GALILEO/Cellular Combination Hercules Antenna is a combination high performance GPS/GALILEO and penta-band cellular antenna solution for reliable asset tracking and remote monitoring. Durable UV and robust PC housing is resistant to vandalism and direct attack. At only 29 mm height it complies with the latest EU height restrictions directives for roof-mounted objects, with a diameter of 49 mm.
It is designed to not catch on tree-branches.
The Hercules can be mounted on metal or non-metal structures as it has a metal ground-plane base integrated inside.
It is designed to not catch on tree-branches.
The Hercules can be mounted on metal or non-metal structures as it has a metal ground-plane base integrated inside.
- Low profile - Height 29 mm and Diameter 49mm
- Heavy duty screw mount
- UV and vandal resistant PC housing
- Cellular -Penta Band Antenna
- 850/900/1800/1900/2100/1575.42 MHz
- GSM/GPRS/CDMA/EVDO/UMTS/HSPA/WCDMA
- GPS/GALILEO - Two Stage 28dB+ LNA
- IP67 & IP69K compliance
- Standard is 3 metres RG174 SMA(M)
- Cables and connectors are fully customizable
Quick Specifications
- Product Line
- Hercules
- Product Series
- MA104
- Packaged Quantity
- 1
- Product Type
- Antenna
- Package Type
- Bulk
- Operating Frequency Range
- 824 MHz to 896 MHz 880 MHz to 960 MHz 1850 MHz to 1990 MHz 1710 MHz to 1880 MHz 1920 MHz to 2170 MHz
- Antenna Gain
- 2 dB
- Connector Type
- SMA
