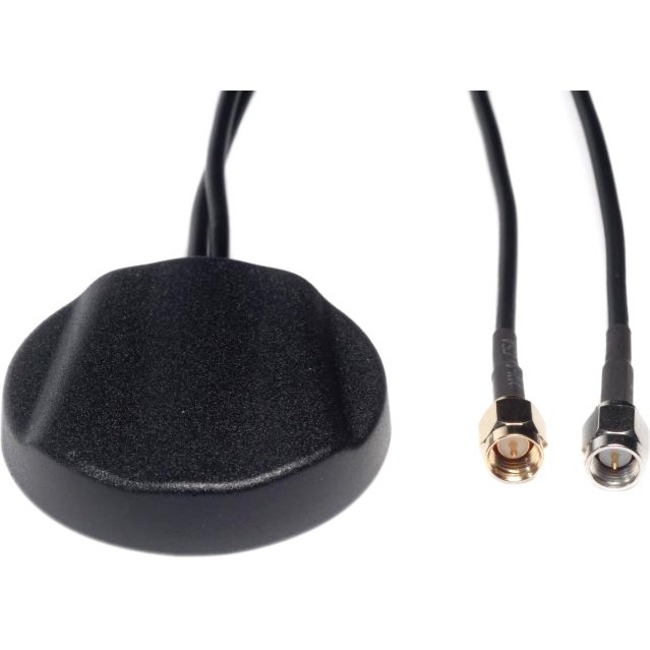

Taoglas MA203 Stingray GPS/GALILEO/Cellular Adhesive Antenna

This is a combination high performance GPS/GALILEO and Penta-band Cellular (GSM / CDMA / PCS / DCS / UMTS / GPRS / EDGE / HSPA) antenna to simplify AVL or Fleet management antenna systems worldwide. Its high quality low profile covert housing can be attached onto the glass or even out of sight under the dashboard. This combination of a high gain GPS/GALILEO antenna and a leading edge penta band cellular antenna is ideal for those applications that require durability, small size and covert installation, and reliable reception and transmission crossing through different mobile networks.

The standard version has 3 metres RG174 cable and SMA(M) connector on both GPS/GALILEO and Cellular. The cables and connectors are completely customizable according to customer requrest.

Features:

GPS/GALILEO

• High LNA Gain up to 32 dB
• Antenna Gain 30 ± 2 dB
• Miniaturized to 55.15x12mm
• Low Noise 1.5 dB max

Cellular

• Advanced penta-band cellular antenna
• (GSM/CDMA/PCS/DCS/UMTS/GPRS/EDGE/ HSPA)

Other

• Water Resistant IP 65 (IP 67 MA.203w version also available)
• Quality textured covert design. Low profile
• UV resistant ABS housing
• Comes with high grade 3M double sided tape for quick and easy mounting
• Customizable cables and connectors
