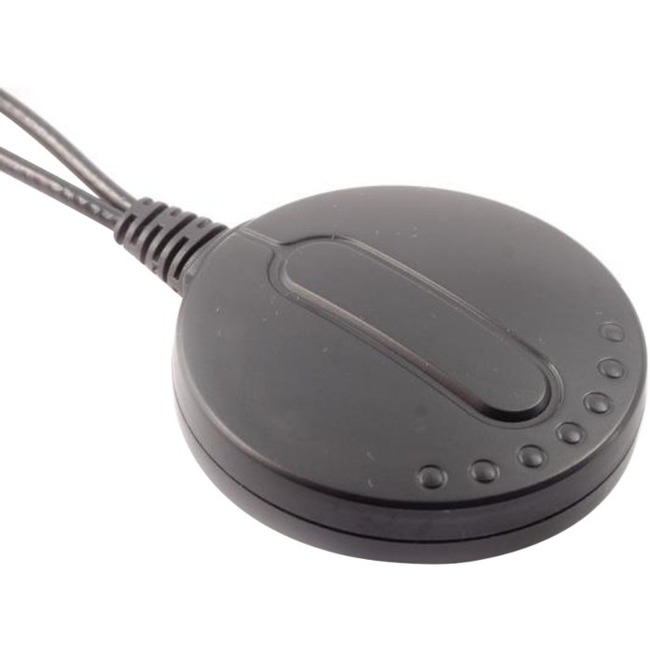

Taoglas Saucer MA301 Magnet Mount GPS & 3G/2G Cellular, SMA(M)
Manufacturer: Taoglas
Mfr. Part: MA301.A.AB.001
824 MHz to 896 MHz, 880 MHz to 960 MHz, 1850 MHz to 1990 MHz, 1710 MHz to 1880 MHz, 1575.42 MHz, 1900 MHz, 2100 MHz - 28 dB - Cellular Network, Outdoor, GPS - Black - Magnetic Mount - SMA Connector
About This Product
Overview
The MA.301 is a combination small form factor high performance GPS and Penta-band Cellular (GSM/CDMA/PCS/DCS/ WCDMA/UMTS) antenna to simplify AVL or Fleet management antenna systems worldwide. It comes with magnet mount as standard. An internal O-ring meets IP-65 waterproof standards. With the strongest GPS and Cellular antenna design team in the industry and rigorous testing Taoglas offers guaranteed performance with your system and your environment.
The standard version comes with 3 metres RG174 cable and SMA(M) connectors for both GPS and Cellular feeds. Cables and connectors are customizable upon request.
The standard version comes with 3 metres RG174 cable and SMA(M) connectors for both GPS and Cellular feeds. Cables and connectors are customizable upon request.
- IP65 - Waterproof
- GPS - High gain LNA up to 32dB
- Penta-band 850/900/1800/1900/2100 MHz
- GSM/CDMA/PCS/DCS/UMTS/HSPA
- Low Profile
- Height 10.8mm Diameter 55.1mm
- RoHS Compliant
Quick Specifications
- Product Line
- Saucer
- Product Model
- MA301
- Packaged Quantity
- 1
- Product Type
- Antenna
- Package Type
- Bulk
- Operating Frequency Range
- 824 MHz to 896 MHz 880 MHz to 960 MHz 1850 MHz to 1990 MHz 1710 MHz to 1880 MHz 1575.42 MHz 1900 MHz 2100 MHz
- Antenna Gain
- 28 dB
- Connector Type
- SMA
