Taoglas Saucer Antenna
Range - UHF - 824 MHz to 896 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz - 28 dB - Cellular Network - Black - Magnetic Mount - SMA Connector
About This Product
Overview

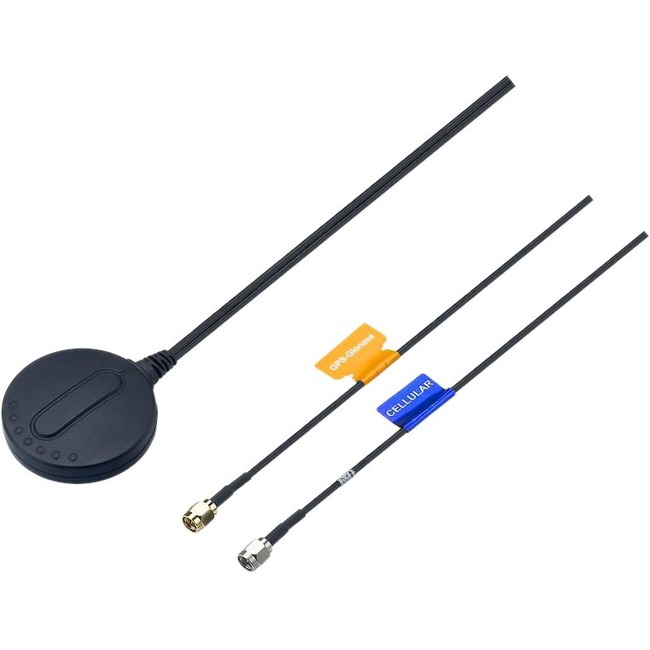

The MA303 SAUCER antenna is a combination small form factor high performance GPS/GLONASS and 2G/3G Cellular GSM/GPRS/CDMA/ PCS/DCS/ WCDMA/UMTS antenna to simplify remote monitoring and fleet management worldwide. It comes with magnetic mount as standard. An internal O-ring meets IP-65 waterproof standards. With the strongest GPS/GLONASS and Cellular antenna design team in the industry and rigorous testing Taoglas offers guaranteed performance with your system and your environment. A front end SAW helps prevent LNA compression and burn out from nearby high power wireless transmissions. It also reduces radiated spurious emission failures in certification. An integrated strain resist helps prevent cable damage from accidental tension on the cable. The standard MA303 version comes with 1 metres RG174 cable and SMA(M) connectors for both GPS/GLONASS and Cellular feeds. Cables and connectors are customizable upon request. Due to typical RF losses, 1 metre cable length is optimal, it is not recommended to use longer than 3 metre cables. Contact your regional Taoglas sales office for more details.
- IP65 - Water Resistant
- GPS/GLONASS - High gain LNA up to 31dB
- Cellular 2G/3G - 850/900/1800/1900/2100 MHz
- GSM/GPRS/CDMA/PCS/DCS/UMTS/HSPA
- Low Profile, Robust and Stylish Design
- Magnetic Mounted
- 58.15mm x 56.2mm x 16.8mm
- 1 meter RG174 SMA(M)
- RoHS Compliant
Quick Specifications
- Product Line
- Saucer
- Packaged Quantity
- 1
- Product Type
- Antenna
- Package Type
- Bulk
- Frequency Band Type
- UHF
- Operating Frequency Range
- 824 MHz to 896 MHz 880 MHz to 960 MHz 1710 MHz to 1880 MHz 1850 MHz to 1990 MHz 1920 MHz to 2170 MHz
- Antenna Gain
- 28 dB
- Connector Type
- SMA
