Taoglas Spartan MA600 3in1 Permanent Mount GPS/GLONASS/GALILEO & Cellular & Wi-Fi SMA(M)
Manufacturer: Taoglas
Mfr. Part: MA600.A.ABC.006
1575.42 MHz, 1602 MHz, 824 MHz to 896 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1710 MHz to 2170 MHz - 5.1 dBi - GLONASS, GPS, Cellular Network, Wireless Data Network, Wireless Access Point, Outdoor - Black - Screw Mount - Omni-directional - SMA Connector
About This Product
Overview

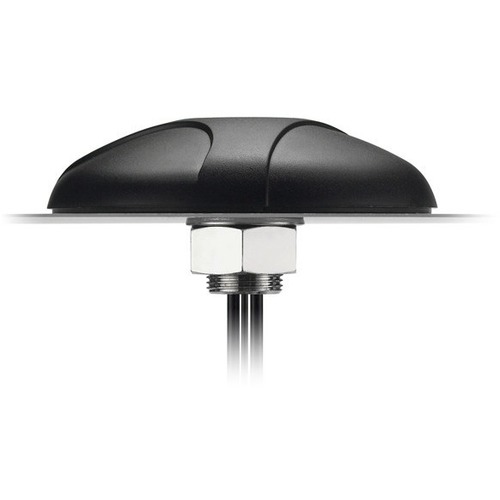

The Spartan MA.600 antenna is a heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.
The Spartan is unique in the market because it combines a 3in1 GPS/GLONASS/GALILEO, Cellular (2G and 3G) and Wi-Fi, heavy-duty antenna with high efficiency in a compact format. The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted with a metal bracket.
For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the Spartan provides a robust, rugged antenna that is durable, even in extreme environments.
All while still maintaining 20dB isolation between antennas. It uses high-shielded PTFE dielectric ultra low-loss cables that maintain low attenuation at all frequency bands, with an average 0.3dB per meter (0.1dB per foot), compared to 0.7dB for RG58 and 1.2dB for RG174. Because of this, the Spartan maximizes chances of passing PTCRB and network approvals first time. The Spartan also has excellent GPS/GLONASS/GALILEO reception without need to attach to an external ground-plane due to coupling to its unique own metal base.
Note: for ground-isolation antennas use the MA.605 version with Isolation Gaskets.
The Spartan is unique in the market because it combines a 3in1 GPS/GLONASS/GALILEO, Cellular (2G and 3G) and Wi-Fi, heavy-duty antenna with high efficiency in a compact format. The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted with a metal bracket.
For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the Spartan provides a robust, rugged antenna that is durable, even in extreme environments.
All while still maintaining 20dB isolation between antennas. It uses high-shielded PTFE dielectric ultra low-loss cables that maintain low attenuation at all frequency bands, with an average 0.3dB per meter (0.1dB per foot), compared to 0.7dB for RG58 and 1.2dB for RG174. Because of this, the Spartan maximizes chances of passing PTCRB and network approvals first time. The Spartan also has excellent GPS/GLONASS/GALILEO reception without need to attach to an external ground-plane due to coupling to its unique own metal base.
Note: for ground-isolation antennas use the MA.605 version with Isolation Gaskets.
- High performance outdoor antenna
- Custom cables and connectors available
- RoHS
Quick Specifications
- Product Line
- Spartan
- Product Series
- MA600
- Packaged Quantity
- 1
- Product Type
- Antenna
- Package Type
- Bulk
- Directivity
- Omni-directional
- Operating Frequency Range
- 1575.42 MHz 1602 MHz 824 MHz to 896 MHz 880 MHz to 960 MHz 1710 MHz to 1880 MHz 1850 MHz to 1990 MHz 1710 MHz to 2170 MHz
- Antenna Gain (Isotropic)
- 5.1 dBi
