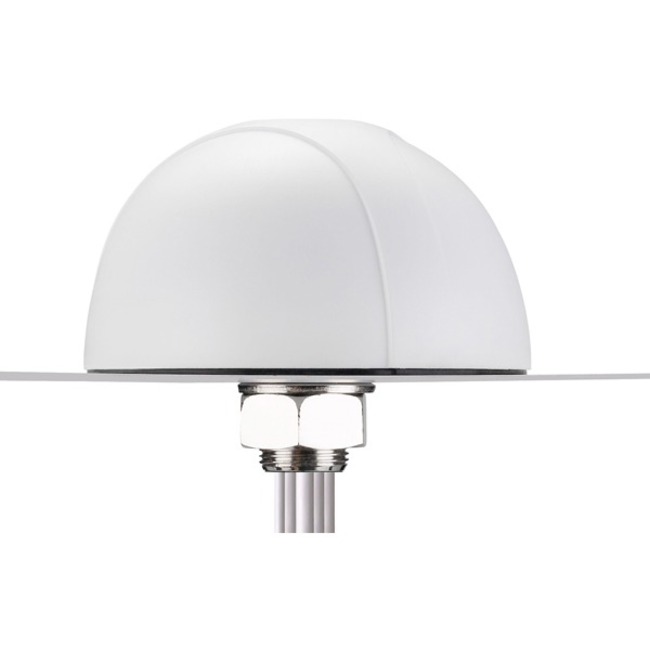

Taoglas Pantheon MA750 Antenna
Manufacturer: Taoglas
Mfr. Part: MA750.W.A.ABICG.003
698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2300 MHz to 2700 MHz, 2900 MHz to 3500 MHz, 2.4 GHz to 2.5 GHz, 4.5 GHz to 5.85 GHz, 1575.42 MHz to 1602 MHz - 20 dB - Wireless Data Network, Cellular Network, OutdoorScrew Mount - Omni-directional - SMA Connector
About This Product
Overview
The MA.750.W Pantheon antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.
This unique antenna delivers powerful MIMO antenna technology for cellular/LTE and Wi-Fi 802.11n and emerging 802.11ac, plus GPS/GLONASS for next generation multiple wireless technology systems, such as telematics. The GPS/GLONASS antenna has a Front End SAW Filter.
Examples are new fleet management and real time video applications that demand high speed video uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges.
Five (5) high performance antennas are integrated into an extremely robust IP67 direct/permanent mount antenna package with excellent isolation (20dB+).
The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance. The cables are low loss allowing for lengths of up to 10 meters (32' and 9.70"), critical for buses, trains and other commercial transport applications.
Customized cables and connector version available.
This unique antenna delivers powerful MIMO antenna technology for cellular/LTE and Wi-Fi 802.11n and emerging 802.11ac, plus GPS/GLONASS for next generation multiple wireless technology systems, such as telematics. The GPS/GLONASS antenna has a Front End SAW Filter.
Examples are new fleet management and real time video applications that demand high speed video uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges.
Five (5) high performance antennas are integrated into an extremely robust IP67 direct/permanent mount antenna package with excellent isolation (20dB+).
The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance. The cables are low loss allowing for lengths of up to 10 meters (32' and 9.70"), critical for buses, trains and other commercial transport applications.
Customized cables and connector version available.
- Provides optimized pattern coverage with 698 MHz to 960 MHz operating frequency range
- Provides connectivity to your wireless data network, making it perfect for usage
- Provides gain of up to 20 dB
- Provides ease of management and installation thanks to its omni-direction feature
- Can be mounted as screw mount
Quick Specifications
- Product Line
- Pantheon
- Product Model
- MA750
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 698 MHz to 960 MHz 1710 MHz to 2170 MHz 2300 MHz to 2700 MHz 2900 MHz to 3500 MHz 2.4 GHz to 2.5 GHz 4.5 GHz to 5.85 GHz 1575.42 MHz to 1602 MHz
- Antenna Gain
- 20 dB
- Connector Type
- SMA
- Height
- 3.37"
