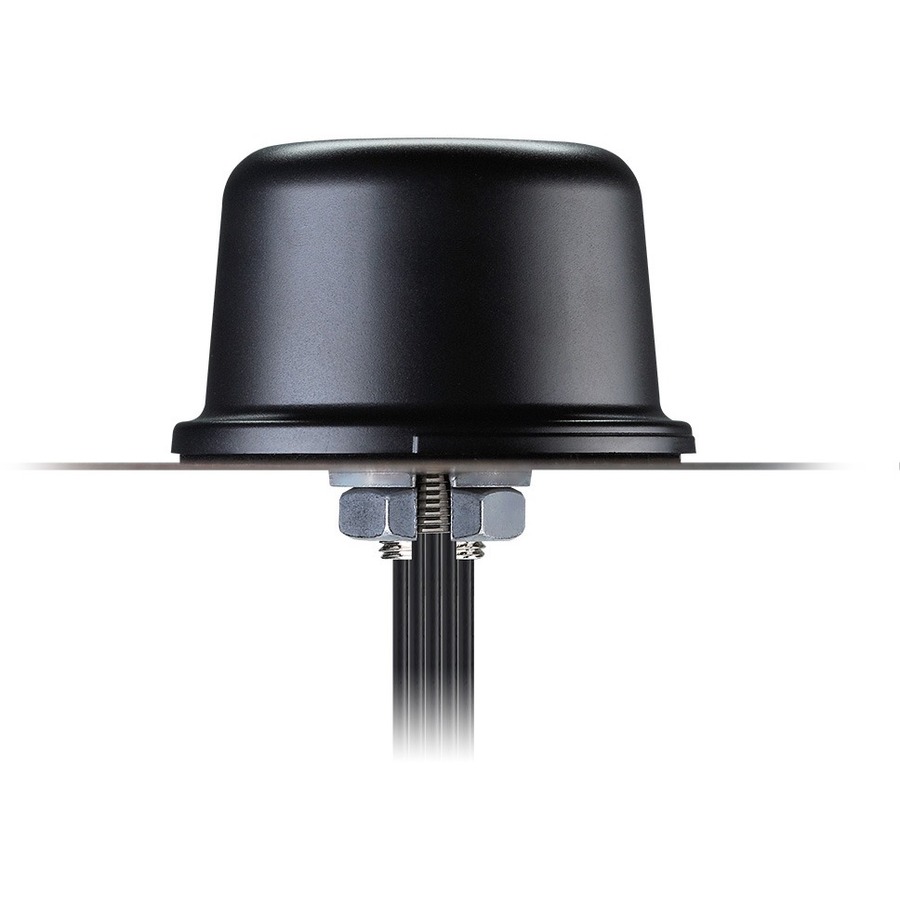

Taoglas Colosseum 5in1 0.3M RG-174 GNSS-Fakra C:LTE(1&2)-Fakra D:2.4/5.8GHz(1&2) Fakra I
698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2490 MHz to 2690 MHz, 2.4 GHz to 5.8 GHz - 4.3 dBi - GPS, Cellular Network, Wireless Data Network - Black - FAKRA Connector
About This Product
Overview
The Colosseum MA850 5in1 antenna is a low profile, heavy-duty, fully IP69K waterproof external M2M antenna for use in worldwide telematics applications which require best in class LTE, Wi-Fi and GNSS performance. It is ideal for solutions that do not have space for mounting the larger Pantheon dome antennas but still require good efficiency and gain. This unique product, at only 57.4mm tall, delivers powerful worldwide 4G LTE MIMO antenna technology at 700MHz/800MHz/1700MHz/1800MHz/2600MHz, dual-band Wi-Fi MIMO, plus GPS-GLONASS-GALILEO-BeiDou for next-generation location accuracy. The LTE antenna also includes legacy 3G and 2G bands to enable fallback using the correct modems in areas where there is no 4G signal.
- Low Profile, Heavy Duty, Robust, 5-in-1 Antenna with small profile IP67 rated enclosure
- LTE MIMO*2 698~960MHz/1710~2170MHz/2490~2690MHz
- Wi-Fi MIMO*2 2.4GHz/5.8GHz
- GPS-GLONASS-BeiDou Antenna
- Permanent Mount
- Worldwide 4G Bands including 3G and 2G
- IP69K Enclosure
- Dims: Diameter 94.3mm, Height 57.4mm
- 0.3M RG174 with FAKRA code C/FAKRA Code D/FAKRA Code I
Quick Specifications
- Product Line
- Colosseum
- Product Model
- MA850
- Product Type
- Antenna
- Operating Frequency Range
- 698 MHz to 960 MHz 1710 MHz to 2170 MHz 2490 MHz to 2690 MHz 2.4 GHz to 5.8 GHz
- Antenna Gain (Isotropic)
- 4.3 dBi
- Connector Type
- FAKRA
- Product Color
- Black
- Height
- 2.26"
