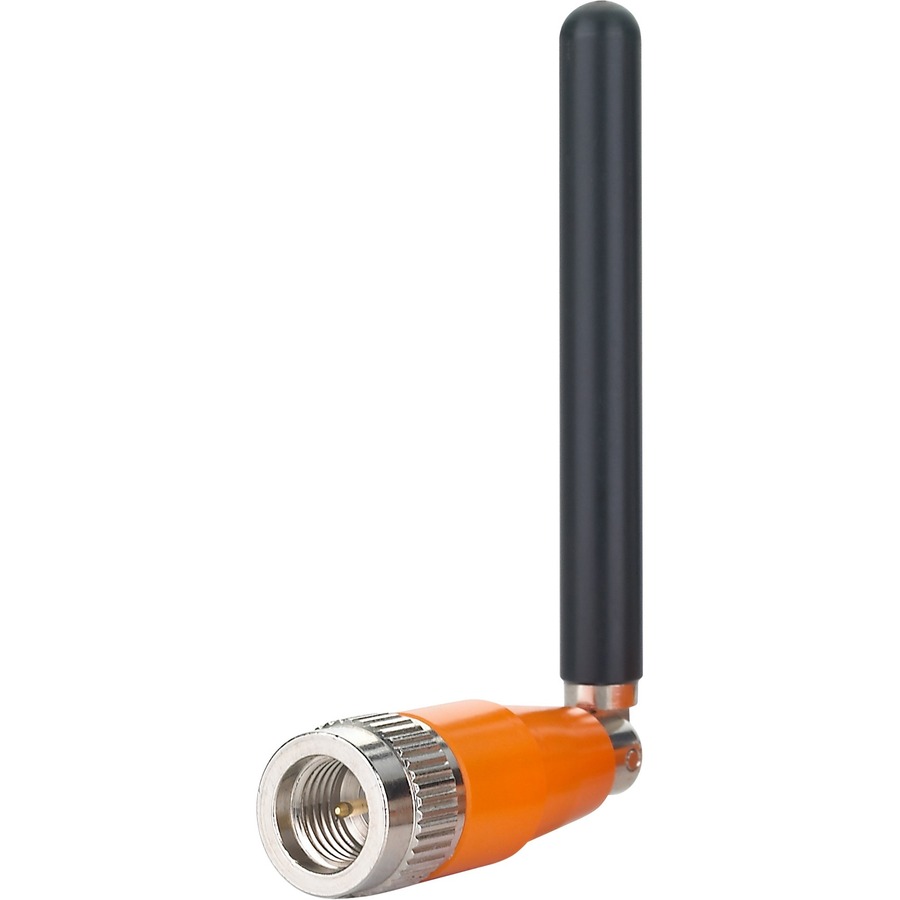

Taoglas TG.08 Cellular/ GPS/ GLONASS/ GALILEO/ BeiDou Monopole Antenna
Manufacturer: Taoglas
Mfr. Part: TG.08.0113
698 MHz to 960 MHz, 1710 MHz to 2700 MHz, 1561 MHz, 1575.42 MHz, 1602 MHz - 4 dBi - Cellular Network, GPS, GLONASS, Indoor - Black/Orange - Whip - Omni-directional - SMA Connector
About This Product
Overview
The compact TG.08 with hinged rotatable SMA connector, is an impressively high efficiency monopole antenna, which provides wide coverage among cellular and GNSS frequencies.
With its cellular and GNSS function, plus compact design, TG.08 can fit and function perfectly with routers, vehicle tracking devices, telematics devices, and remote monitoring systems. It is also ideal for use with cellular modules with Assisted GPS functionality that can be implemented in various devices.
This 72mm long monopole antenna works efficiently from 700MHz to 2700MHz, widely covering 4G/3G/2G bands, as well as GPS/GLONASS/Galileo /BeiDou. At its maximum efficiency when connected to ground plane, it can achieve 73% and 67% at GPS and LTE bands, respectively.
As all monopole antennas, TG.08 works best while connecting directly to the ground-plane of the device main-board, or with the device's metal enclosure.
The robust brass hinge enables TG.08 to be oriented in all directions, providing users to maximize performance with minimum effort.
TG.08, the small antenna with surprisingly large efficiency, is surely the best candidate in the market for Cellular/GNSS combination terminal antennas.
With its cellular and GNSS function, plus compact design, TG.08 can fit and function perfectly with routers, vehicle tracking devices, telematics devices, and remote monitoring systems. It is also ideal for use with cellular modules with Assisted GPS functionality that can be implemented in various devices.
This 72mm long monopole antenna works efficiently from 700MHz to 2700MHz, widely covering 4G/3G/2G bands, as well as GPS/GLONASS/Galileo /BeiDou. At its maximum efficiency when connected to ground plane, it can achieve 73% and 67% at GPS and LTE bands, respectively.
As all monopole antennas, TG.08 works best while connecting directly to the ground-plane of the device main-board, or with the device's metal enclosure.
The robust brass hinge enables TG.08 to be oriented in all directions, providing users to maximize performance with minimum effort.
TG.08, the small antenna with surprisingly large efficiency, is surely the best candidate in the market for Cellular/GNSS combination terminal antennas.
- Provides optimized pattern coverage with 698 MHz to 960 MHz operating frequency range
- Widely used in cellular network
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Antenna can be mounted as whip
Quick Specifications
- Packaged Quantity
- 1
- Product Type
- Antenna
- Package Type
- Bulk
- Directivity
- Omni-directional
- Operating Frequency Range
- 698 MHz to 960 MHz 1710 MHz to 2700 MHz 1561 MHz 1575.42 MHz 1602 MHz
- Antenna Gain (Isotropic)
- 4 dBi
- Connector Type
- SMA
- Product Color
- Black/Orange
