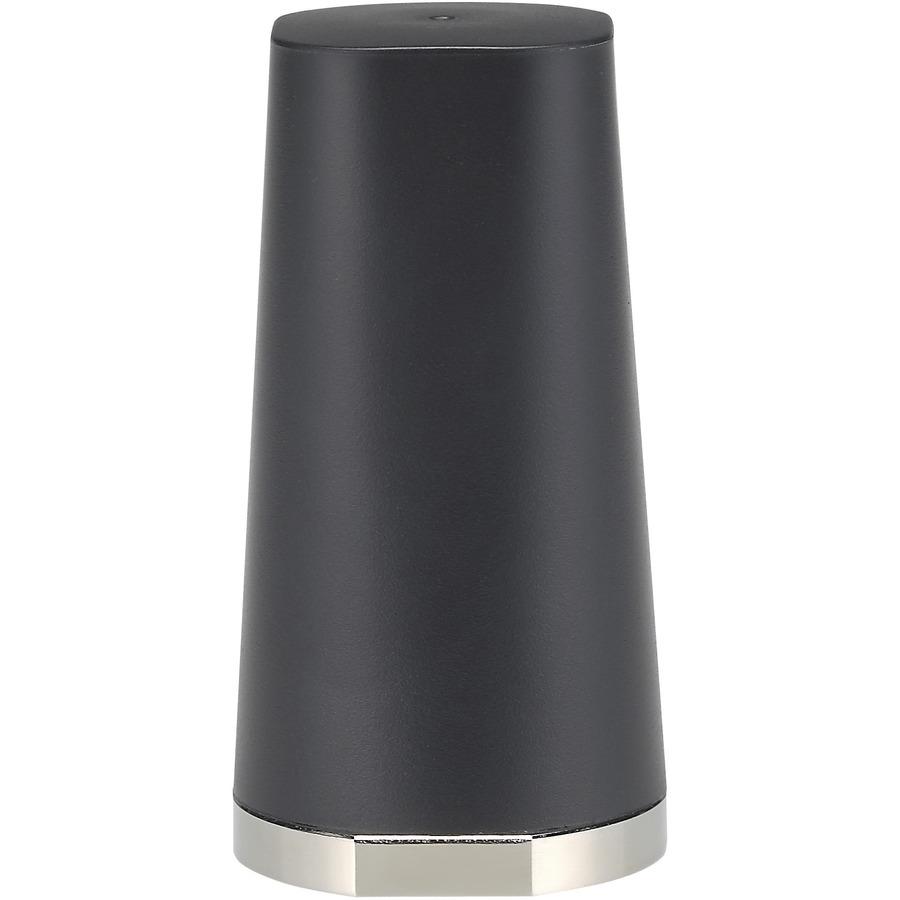

Taoglas Shockwave TLS.01 4G/3G/2G Terminal Antenna, N Type(M)
Manufacturer: Taoglas
Mfr. Part: TLS.01.1F11
698 MHz to 803 MHz, 824 MHz to 896 MHz, 880 MHz to 960 MHz, 1575.42 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2300 MHz to 2700 MHz - 2.3 dBi - GPS, Cellular Network, Indoor, Outdoor - Black - Omni-directional - N-Type Connector
About This Product
Overview
The Shockwave TLS.01.1F11 is a permanent mount, waterproof, external 2G/3G/4G cellular and GPS antenna operating at 698-960/1575.42/1710-2700MHz with an N type male connector. It has been designed to be used on a Ground Plane. It can be used in mobile and fixed applications for 4G LTE wireless such as:
A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location, where an N type female connector juts out from a metal panel. Waterproof O-rings around the bottom base prevent water from leaking under the antenna.
The TLS.01 antenna is IP67 waterproof and IP69K resistant against high pressure water jets in commercial cleaning environments, which makes the antenna ideal for 2G/3G/4G/GPS applications either in indoor or in harsh outdoor environments.
- Public safety
- HD Video Streaming
- Utilities and Smart Cities
- Fleet Management
- Agricultural
- Industrial
A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location, where an N type female connector juts out from a metal panel. Waterproof O-rings around the bottom base prevent water from leaking under the antenna.
The TLS.01 antenna is IP67 waterproof and IP69K resistant against high pressure water jets in commercial cleaning environments, which makes the antenna ideal for 2G/3G/4G/GPS applications either in indoor or in harsh outdoor environments.
- Applicable for 2G/3G/4G cellular bands and GPS
- Over 50% efficiency and 2.3 dBi gain
- Mechanically robust for indoor/outdoor applications
- Height: 79.45mm(3.13") ; Diameter : 42mm(1.65")
- IP67 and IP69K Waterproof
- N type(M) connector
- RoHS compliant
Quick Specifications
- Product Line
- Shockwave
- Product Model
- TLS.01
- Packaged Quantity
- 1
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 698 MHz to 803 MHz 824 MHz to 896 MHz 880 MHz to 960 MHz 1575.42 MHz 1710 MHz to 1880 MHz 1850 MHz to 1990 MHz 1920 MHz to 2170 MHz 2300 MHz to 2700 MHz
- Antenna Gain (Isotropic)
- 2.3 dBi
- Connector Type
- N-Type
